Download the Ford T5 5-Speed Transmission Internals CAD Model available in STEP and IGES CAD formats. Converted polygonal versions also available in MAX, FBX, OBJ, BLEND, C4D file formats.
This solid CAD 3d model compatible with AutoCAD, SolidWorks, Inventor, Pro/Engineer, Siemens NX, PTC Creo, Fusion 360, Solid Edge, CATIA, ACIS and other CAD/CAM/CAE packages. Converted versions compatible with 3ds Max, Maya, Blender, Cinema 4D, Unreal Engine, Unity, Lightwave, Softimage, SketchUp, and other 3D modeling, animation, game design and AR/VR packages.

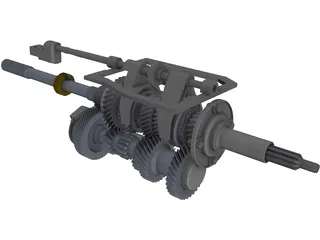

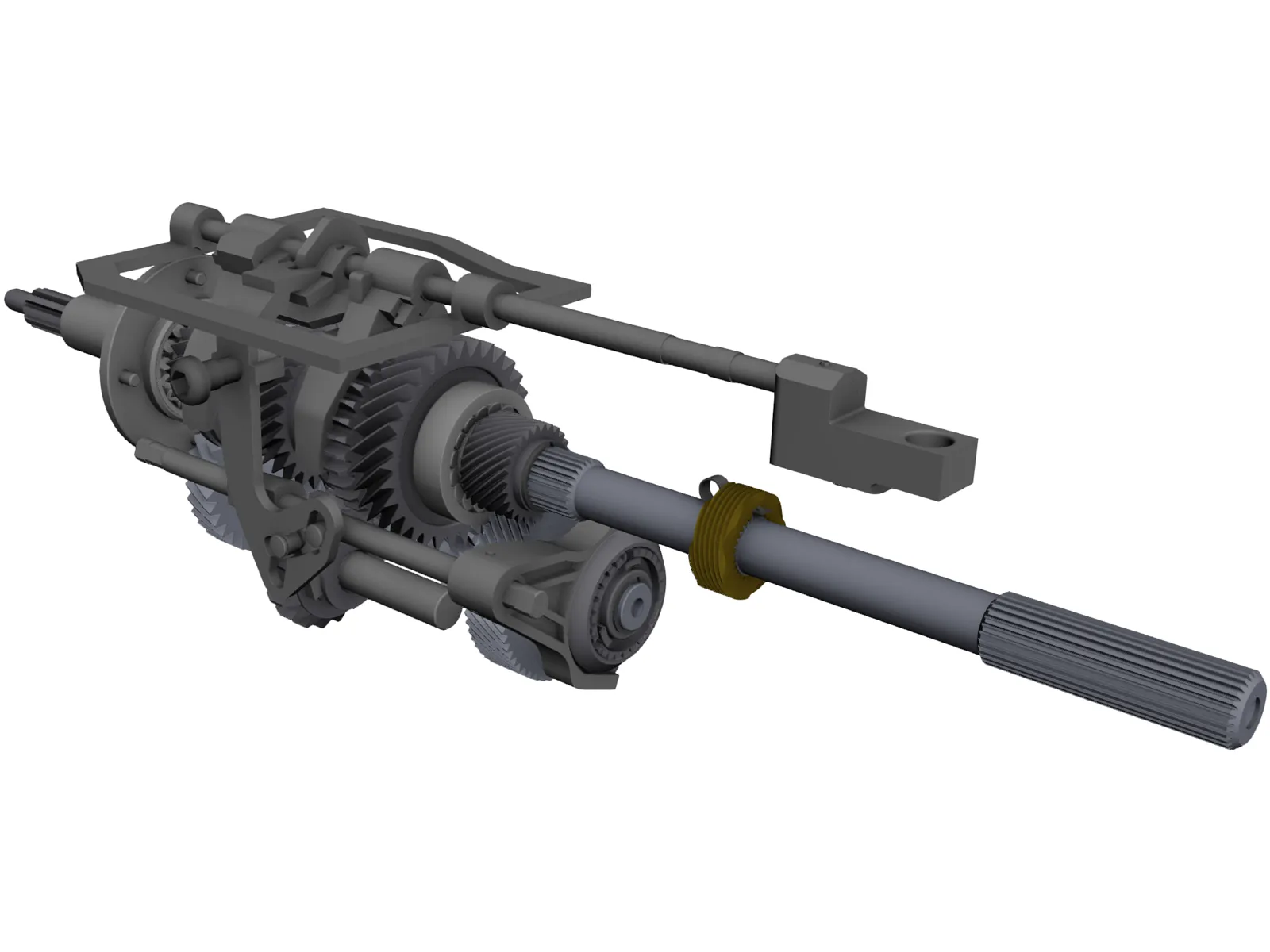

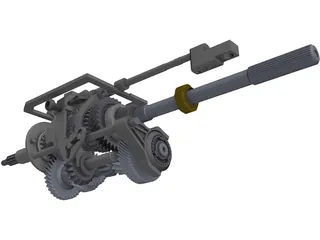

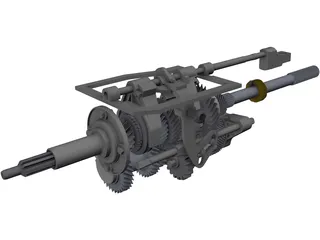

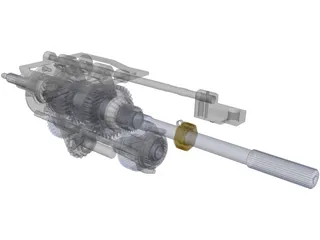

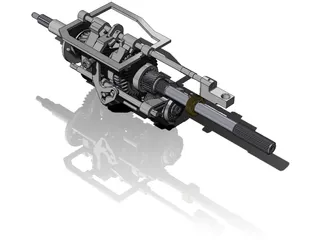

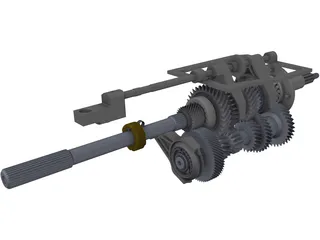

This is a step model of Ford World Class T5 as used with a 1986 thru 1993 Ford Mustang V8. This internal components only. The shift mechanism is included but there is no bellhousing or transmission case.
