Rock Drilling Machine CAD Model

CNC 3D model of a rock drilling machine with realistic mechanical details and accurate proportions. Ideal for technical presentations, engineering layouts, and 3D asset libraries, enabling clear visualization of drill body, mounting, and key components for industrial projects.

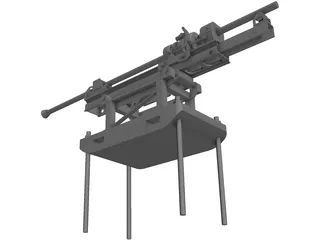

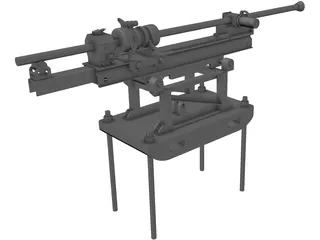

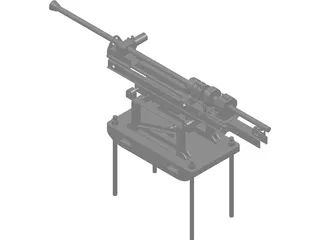

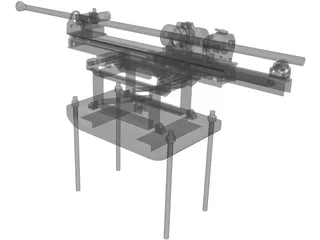

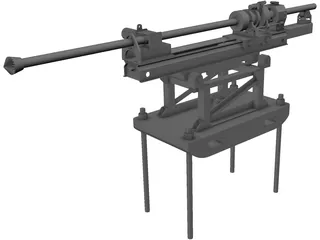

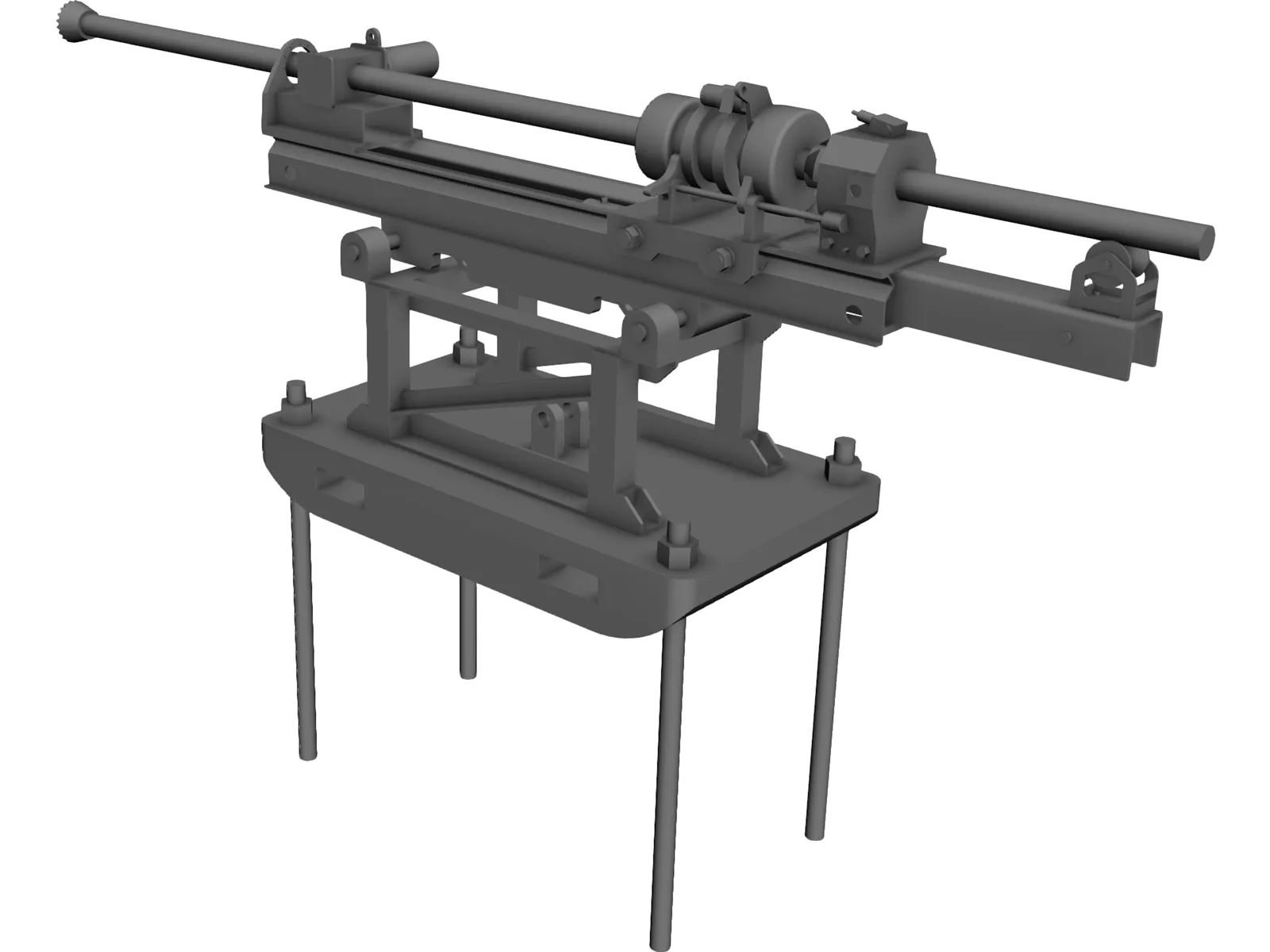

Rock Drilling Machine 3D Model main preview

Overview

Download the Rock Drilling Machine CAD Model available in STEP and IGES CAD file formats. Converted polygonal versions also available in MAX, FBX, OBJ, BLEND, C4D file formats.

This solid CAD 3d model compatible with AutoCAD, SolidWorks, Inventor, Pro/Engineer, Siemens NX, PTC Creo, Fusion 360, Solid Edge, CATIA, ACIS and other CAD/CAM/CAE packages. Converted versions compatible with 3ds Max, Maya, Blender, Cinema 4D, Unreal Engine, Unity, Lightwave, Softimage, SketchUp, and other 3D modeling, animation, game design and AR/VR packages.

Rock Drilling Machine used for drilling core samples or drilling holes for explosives etc.

Uploaded by Aaron Rodd on November 2010

License

Royalty-Free License.
Commercial and editorial use according to site license terms.
Redistribution of source files is not allowed.
Please review the full license details before using the model in published work.
