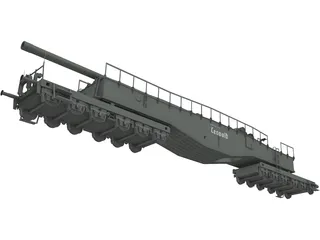

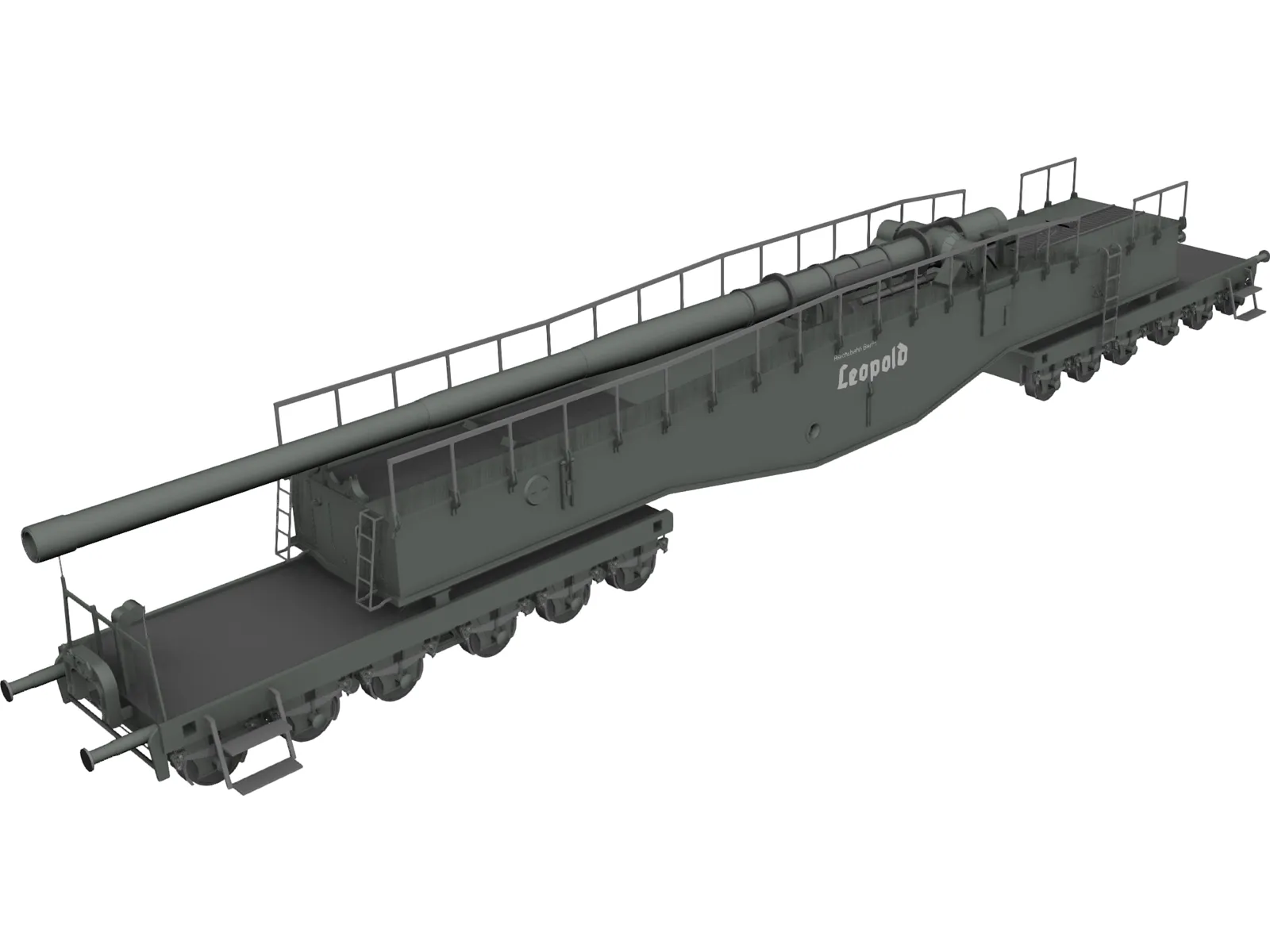

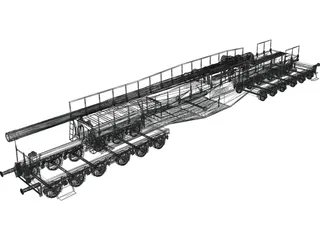

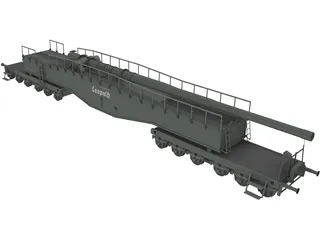

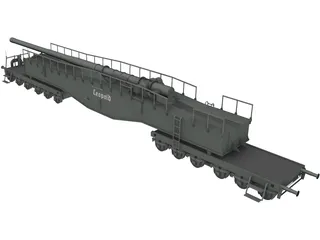

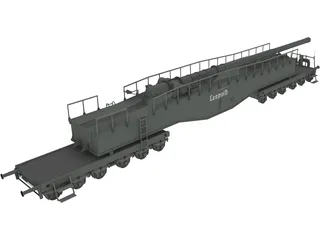

K5 Leopold 3D Model for 3ds Max, Maya, Cinema 4D, Lightwave, Softimage, Blender and other 3D modeling and animation software.
The Krupp K5 series were consistent in mounting a 21.5 m long gun barrel in a fixed mounting with only vertical elevation of the weapon. This gondola was then mounted on a pair of 12-wheel bogies designed to be operated on commercial and military rails built to German standards. This mounting did not permit any degree of horizontal traverse, but instead the carriage had to be aligned on the rails first, with only minimal fine levelling capable once halted. Hence the gun could only fire at targets tangential to an existing railway track.

To track targets needing greater traverse either a curved length of railway was used with the gun shunted backwards or forwards to aim; a cross-track was laid with the front bogie turned perpendicular to the rest of the gun and moved up and down the cross-track to train the weapon; or for 360 degree traverse, the so-called "Vögele Turntable" could be constructed, consisting of a raised rail section (the "firing bed") carrying the gun, running on a circular track with a central jack to raise the gun during traverse and to take some of the enormous weight.

The main barrel of the K5 is 283 mm in calibre (caliber), and is rifled with twelve 7 mm grooves. These were originally 10 mm deep, but were shallowed to rectify cracking problems.
Uploaded by killer8 into Weapons - Cannons 3D Models.
Specification:
Code: 47891
Uploaded: Jul 2011
Geometry: Polygonal
Polygons: 373122
Vertices: 203661
Objects: 1081
Materials: 7
Textures: 0
UV Mapped: No
Minimum account required: Free with uploads
