Download the FSAE Frame 2017 CAD Model available in STEP and IGES CAD file formats. Converted polygonal versions also available in MAX, FBX, OBJ, BLEND, C4D file formats.
This solid CAD 3d model compatible with AutoCAD, SolidWorks, Inventor, Pro/Engineer, Siemens NX, PTC Creo, Fusion 360, Solid Edge, CATIA, ACIS and other CAD/CAM/CAE packages. Converted versions compatible with 3ds Max, Maya, Blender, Cinema 4D, Unreal Engine, Unity, Lightwave, Softimage, SketchUp, and other 3D modeling, animation, game design and AR/VR packages.

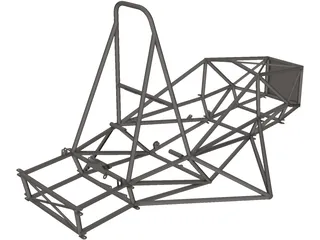

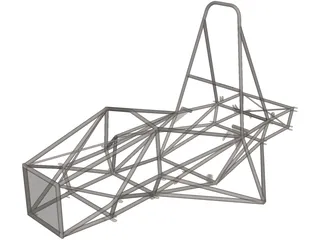

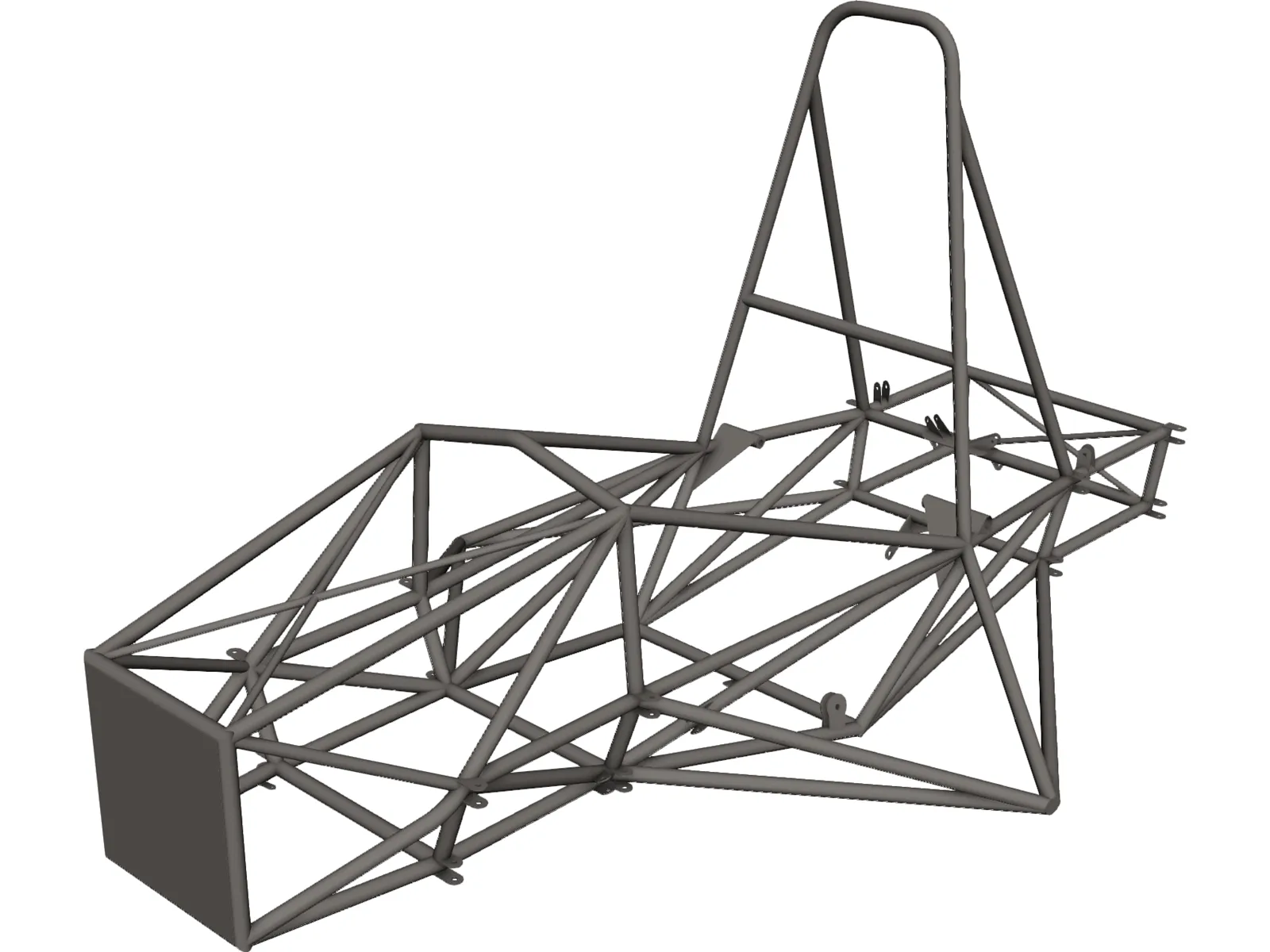

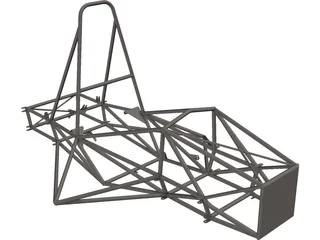

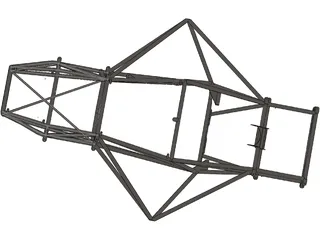

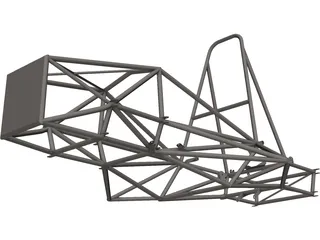

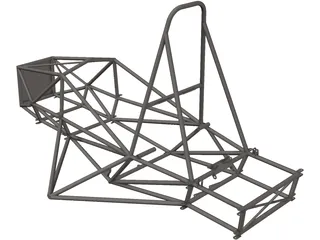

This is a rules compliant frame for the 2017 formula SAE United States competitions. This frame was further modified before final use by the team. All nodes are properly coped. Torsional stiffness was around 1500 lb-ft/deg and weight was around 55 pounds.
