FSAE Chassis CAD Model (2018)

FSAE chassis 3D model featuring a full CAD representation of the race car frame and key structural components. Built for engineering review, fitment checks, and drivetrain integration planning, this detailed model helps streamline design iterations and support accurate manufacturing-ready documentation.

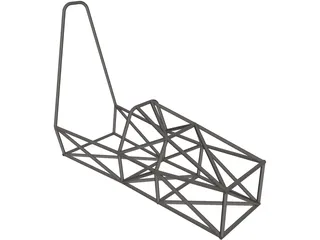

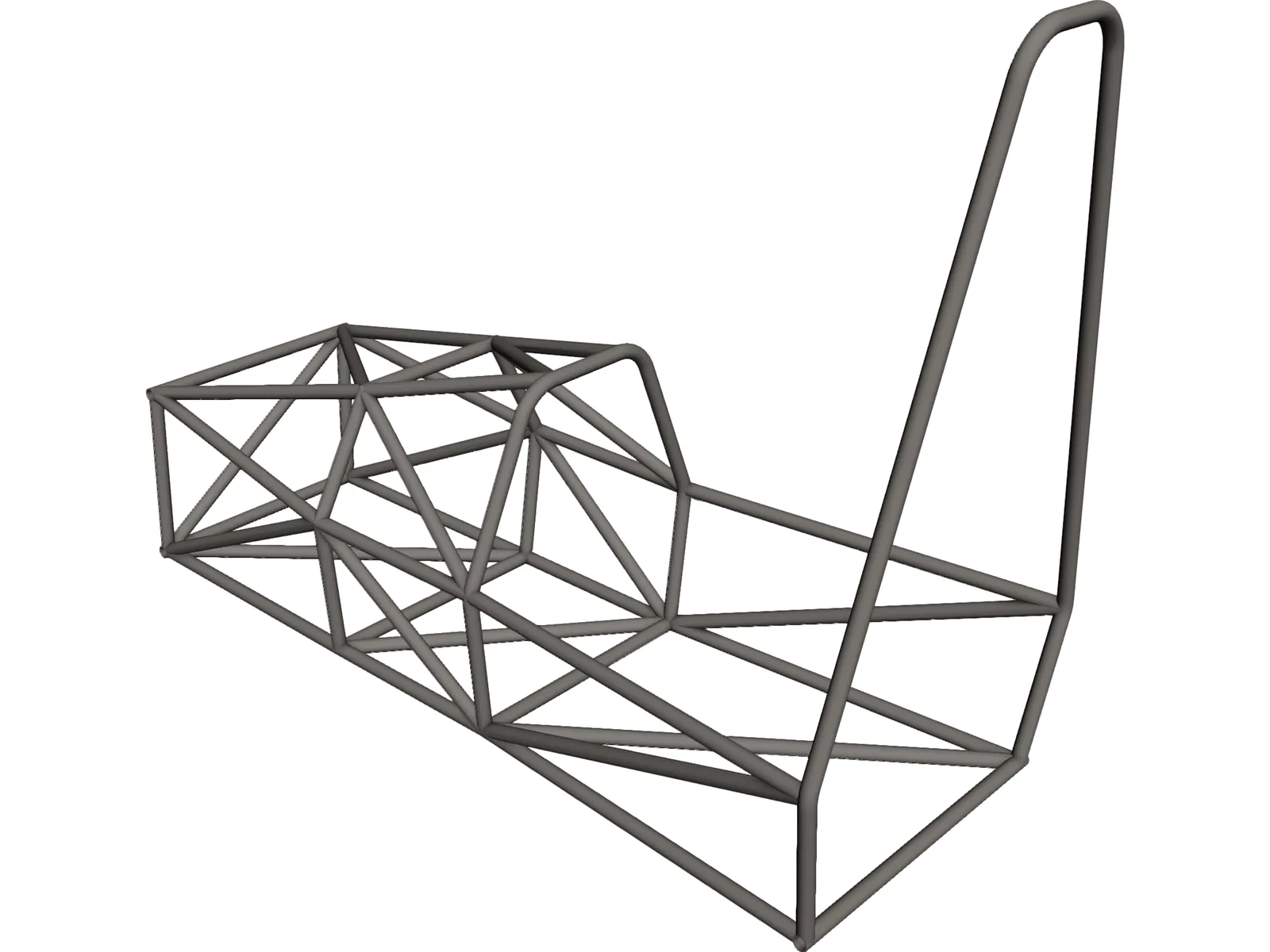

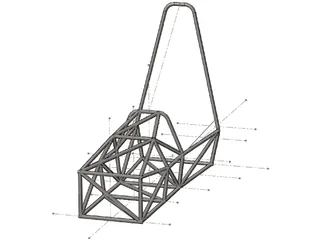

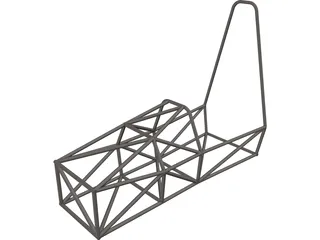

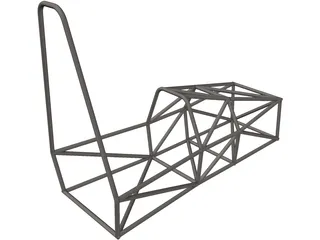

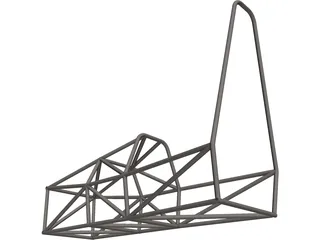

FSAE Chassis (2018) 3D Model main preview

Overview

Download the FSAE Chassis CAD Model (2018) available in STEP and IGES CAD file formats. Converted polygonal versions also available in MAX, FBX, OBJ, BLEND, C4D file formats.

This solid CAD 3d model compatible with AutoCAD, SolidWorks, Inventor, Pro/Engineer, Siemens NX, PTC Creo, Fusion 360, Solid Edge, CATIA, ACIS and other CAD/CAM/CAE packages. Converted versions compatible with 3ds Max, Maya, Blender, Cinema 4D, Unreal Engine, Unity, Lightwave, Softimage, SketchUp, and other 3D modeling, animation, game design and AR/VR packages.

The chassis was designed according to 2018 FSAE rule book.

Uploaded by B CHATHURA BUDDHIKA on January 2019

License

Royalty-Free License.
Commercial and editorial use according to site license terms.
Redistribution of source files is not allowed.
Please review the full license details before using the model in published work.
