Engine Ferrari 288 GTO 3D CAD Model

Engine Ferrari 288 GTO 3D Model
3D
Engine Ferrari 288 GTO 3D CAD Model for AutoCAD, SolidWorks, Inventor, Pro/Engineer, CATIA, 3ds Max, Maya, Cinema 4D, Lightwave, Softimage, Blender and other CAD and 3D modeling software.

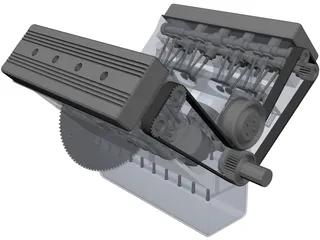

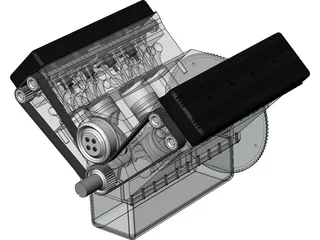

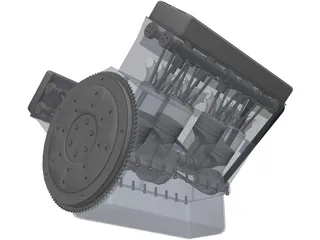

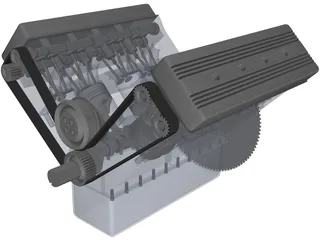

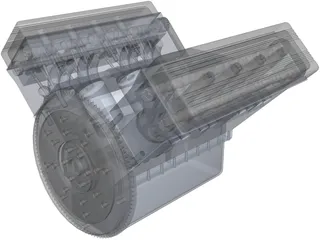

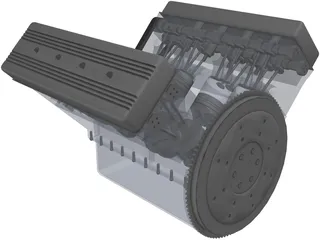

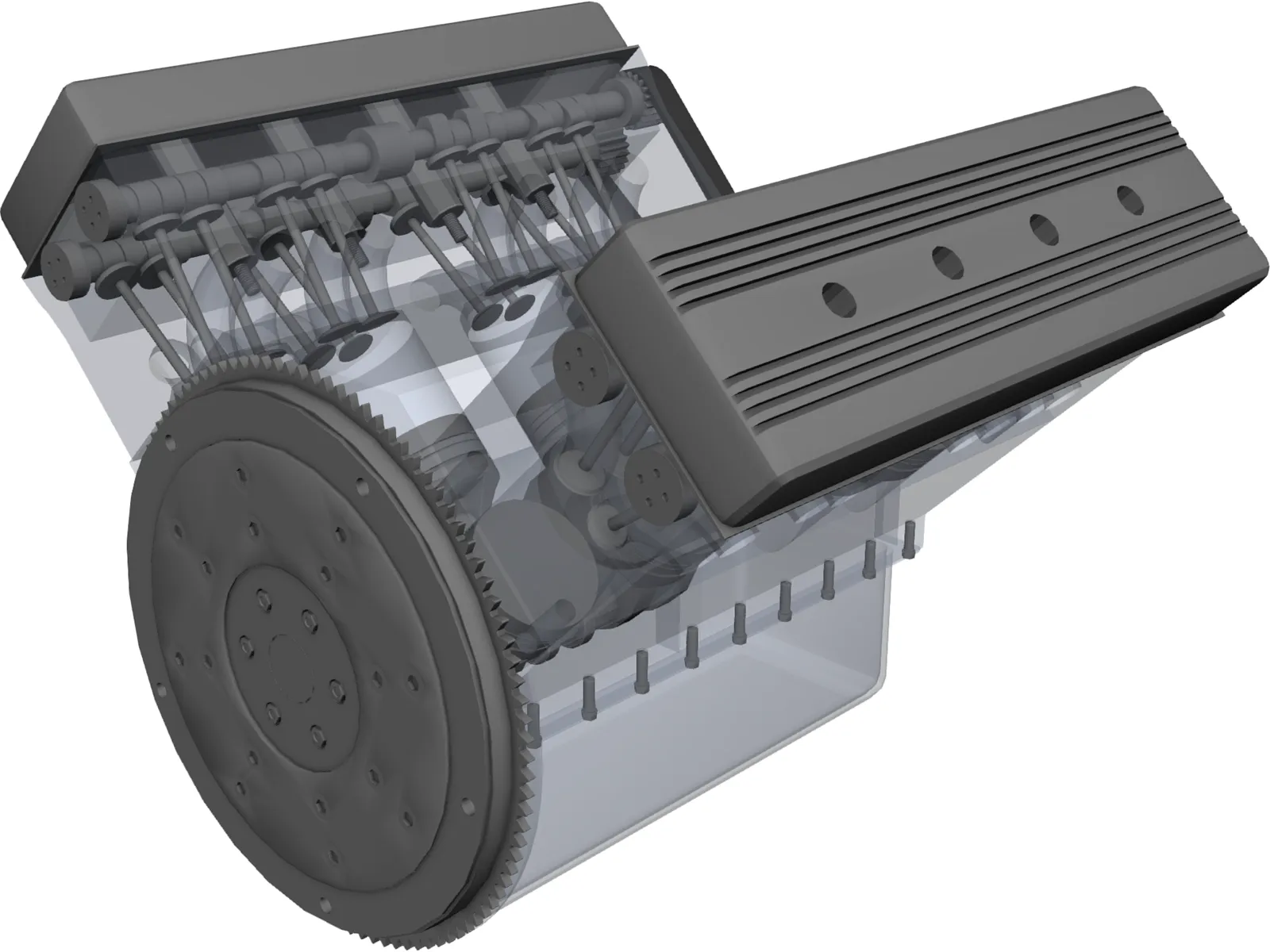

The 1980`s Ferrari 2.9 litre v8 twin turbo engine used in the famous 288 GTO race car. It is is a mid engined car so keep that in mind when using it to build. It is also a very rudimentary model as far as the outer BLOCK dimensions go they`re not 100% accurate though the inner BLOCK dimensions ARE 100% accurate. The bore and stroke are correct and the deck height (measured from the center of the crankshaft to the top surface of the block where the pistons protrude slightly, if that still doesn`t make sense go google it) is correct as well. The oil pan is completely bupkiss it is simply a placeholder, and I have not included the front timing belt covers, and no cooling system has been made for the model either.
Specification:
Code: 38567
Uploaded: Jul 2010
Geometry: CAD Solid
Polygons: -
Vertices: -
Objects: -
Materials: -
Textures: -
UV Mapped: No
Minimum account required: Free with uploads
Order Now
File Formats:
Polygonal
CAD
other file formats

3D Model Reviews

  • no reviews

3D File Formats

Downloadable 3D Polygonal Mesh file formats available: 3ds Max (.max), Wavefront (.obj), Autodesk FBX (.fbx), Blender (.blend), Cinema 4D (.c4d). Downloaded 3D Models can be used in 3ds Max, Blender, Maya, Lightwave, Softimage, Cinema 4D, Houdini, Daz Studio, Modo, Unity 3D, Unreal Engine, SketchUp, ZBrush, Poser and other 3D modeling software. If you need, the following file formats can be exported from these above programs: 3D Studio (.3ds), Alembic (.abc), AutoCAD (.dxf, .dwg), COLLADA (.dae), Microsoft DirectX Direct3D (.x), glTF 2.0 WebGL (.glb, .gltf), Stanford (.ply), StereoLithography (.stl), Universal Scene Description (.usd, .usdc, .usda), VRML97 (.wrl), X3D Extensible 3D (.x3d).

Downloadable 3D CAD Solid Object file formats available: STEP SOLID [AP214] (.step), IGES 5.3 NURBS (.iges). 3D CAD Solids can be imported into SolidWorks (.sldasm; .sldprt), Autodesk Inventor (.iam; .ipt), Pro/Engineer (.asm; .prt), SolidEdge, CATIA, ACIS and other CAD/CAM/CAE packages. 3D CAD models can be downloaded as polygonal 3D meshes also.
