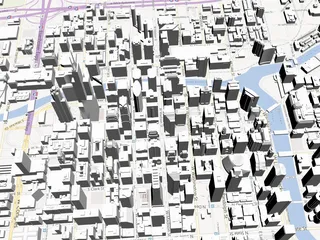

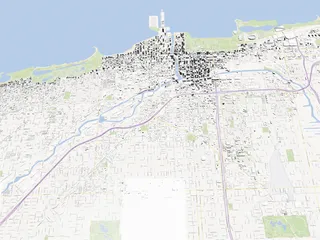

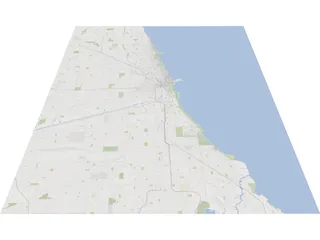

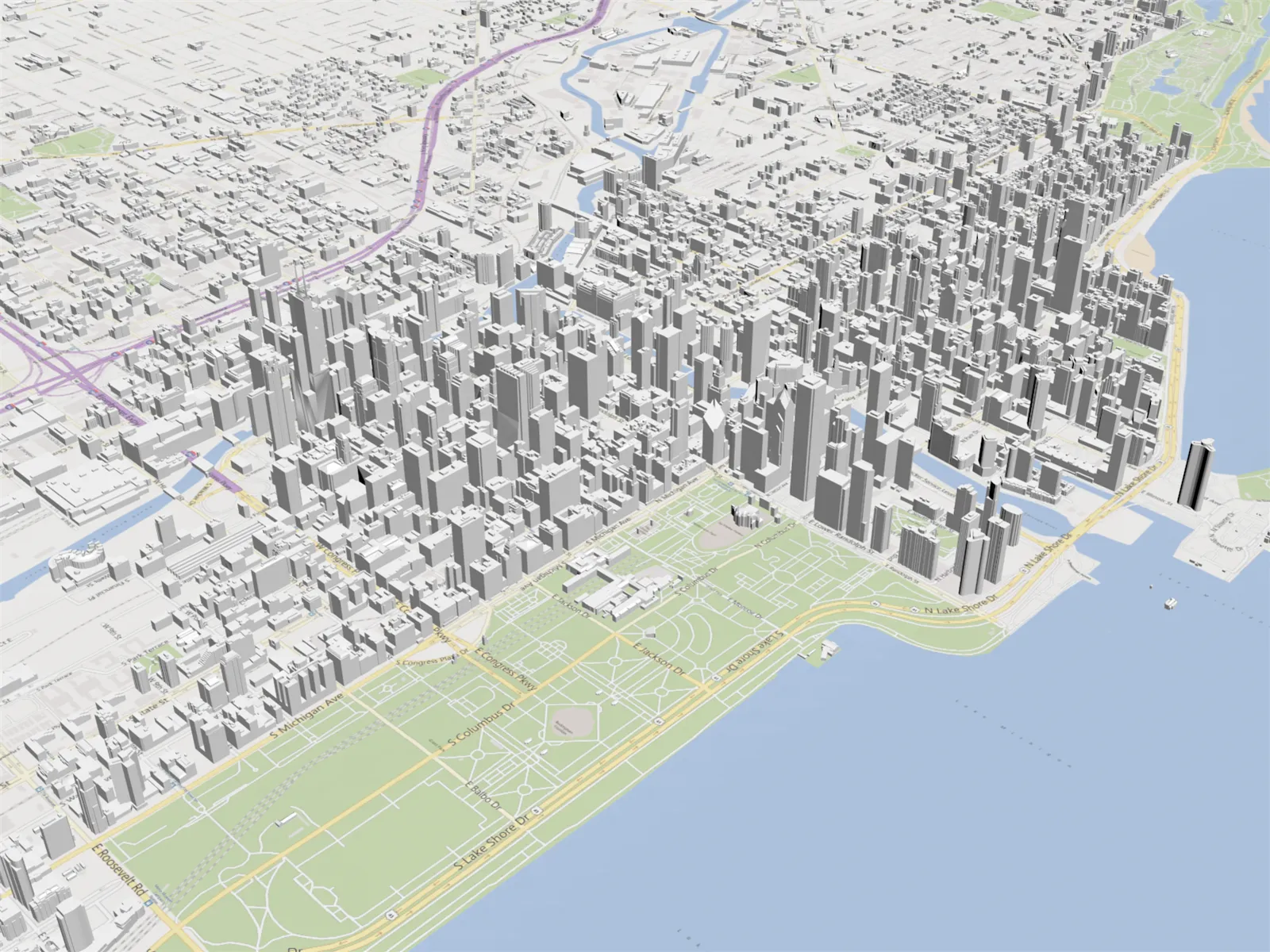

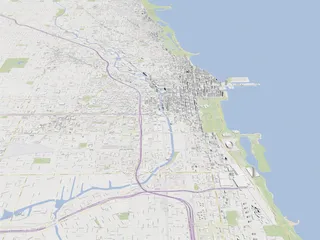

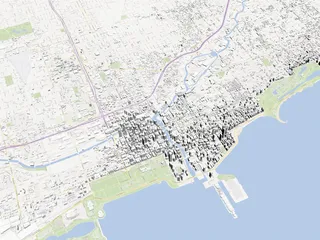

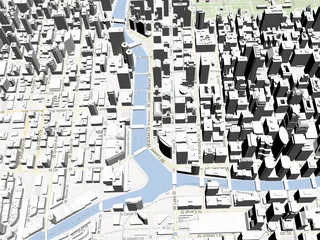

Chicago City Map 3D Model

Chicago City Map 3D Model
Chicago City Map 3D Model for 3ds Max, Maya, Cinema 4D, Lightwave, Softimage, Blender and other 3D modeling and animation software.
This 3D model in projected spatial NAD83 UTM zone 16N planar Cartesian metric coordinates centered on XY-plane with Z-axis points up. Centering on XY-plane is required for correct rendering to prevent z-buffer floating point precision inaccuracy for every camera angle, zoom and position. To get true North American Datum 1983 Universal Transverse Mercator Zone 16N SRID 26916 coordinate reference system based on the WGS84 datum for calculations, if needed, simply 2D transform every vertex X coordinate by 447071,304108384 and every vertex Y coordinate by 4637079,99163735.
All vertices in 64-bit double-precision floating-point format with correct DEM for ground elevation data and with correct buildings heights and positions.
Entire scene bounds (in GPS coordinates):
Top-Left corner (-87,813720703125 / 41,6893222599704),
Bottom-Right corner (-87,462158203125 / 42,0492926386868).
.OBJ is native file format for this 3D model.
For any questions about this 3D model please contact me on Support page with custom 3d city modeling request.
Includes: Chicago Historial Society, Gold Coast, Old Town, Cubs Care Park, Seward Park, Near North Side, Drake Hotel, Palmolive Building, John Hancock Center, Water Tower Place, Loyola Univ of Chicago-Water Tower, Museum of Contemporary Art, Lake Shore Park, Northwestern University-Chicago, Northwestern Memorial Hospital, Allerton Crowne Plaza Chicago, River North, Olive Park, Navy Pier, Intercontinental-Chicago, McGraw-Hill Building, Tribune Tower, NBC Tower, Merchandise Mart, Quaker Oats Building, Carbide and Carbon Building, James R Thompson Center, Chicago Title, Ford Center For Performing Arts, Chicago Theatre, Prudential Building, Aon Center, Chicago City Hall, Daley Civic Center, Macy`s, Chicago Cultural Center, Millennium Park Bandshell, Civic Opera House, Chicago Temple, Chicago Mercantile Exchange, Chase Tower, Carson Pirie Scott, Lasalle Bank Loop Theatre, Art Institute of Chicago, Encyclopaedia Britannica, Daley Civic Center, Auditorium Theatre, Buckingham Fountain, Blackstone Hotel, Grand Park, Deaborn Park, South Loop, John G Shedd Aquarium, Field Museum of Natural History, Burnham Park, Adler Planetarium, Soldier Field, Northerly Island, Chinatown and other objects.
Specification:
Code: 60783
Uploaded: Apr 2013
Geometry: Polygonal
Polygons: 2226191
Vertices: 3079227
Objects: 163
Materials: 89
Textures: 88
UV Mapped: Yes
Minimum account required: Hedra
Order Now
File Formats:
other file formats

3D Model Reviews

  • no reviews

3D File Formats

Downloadable 3D Polygonal Mesh file formats available: 3ds Max (.max), Wavefront (.obj), Autodesk FBX (.fbx), Blender (.blend), Cinema 4D (.c4d), AutoCAD (.dxf). Downloaded 3D Models can be used in 3ds Max, Blender, Maya, Lightwave, Softimage, Cinema 4D, AutoCAD, Houdini, Daz Studio, Modo, Unity 3D, Unreal Engine, SketchUp, ZBrush, Poser and other 3D modeling software. The following file formats can be exported from these above programs: 3D Studio (.3ds), Alembic (.abc), COLLADA (.dae), Microsoft DirectX Direct3D (.x), glTF 2.0 WebGL (.glb, .gltf), Stanford (.ply), StereoLithography (.stl), Universal Scene Description (.usd, .usdc, .usda), VRML97 (.wrl), X3D Extensible 3D (.x3d).

Downloadable 3D CAD Solid Object file formats available: STEP SOLID [AP214] (.step), IGES 5.3 NURBS (.iges). 3D CAD Solids can be imported into SolidWorks (.sldasm; .sldprt), Autodesk Inventor (.iam; .ipt), Pro/Engineer (.asm; .prt), PTC Creo, Siemens NX, Fusion 360, SolidEdge, CATIA, ACIS and other CAD/CAM/CAE packages. 3D CAD models can be downloaded as polygonal 3D meshes also.
