Download the Bison Pullers 2008 Model Tractor Chaincase CAD Model available in STEP and IGES CAD file formats. Converted polygonal versions also available in MAX, FBX, OBJ, BLEND, C4D file formats.
This solid CAD 3d model compatible with AutoCAD, SolidWorks, Inventor, Pro/Engineer, Siemens NX, PTC Creo, Fusion 360, Solid Edge, CATIA, ACIS and other CAD/CAM/CAE packages. Converted versions compatible with 3ds Max, Maya, Blender, Cinema 4D, Unreal Engine, Unity, Lightwave, Softimage, SketchUp, and other 3D modeling, animation, game design and AR/VR packages.

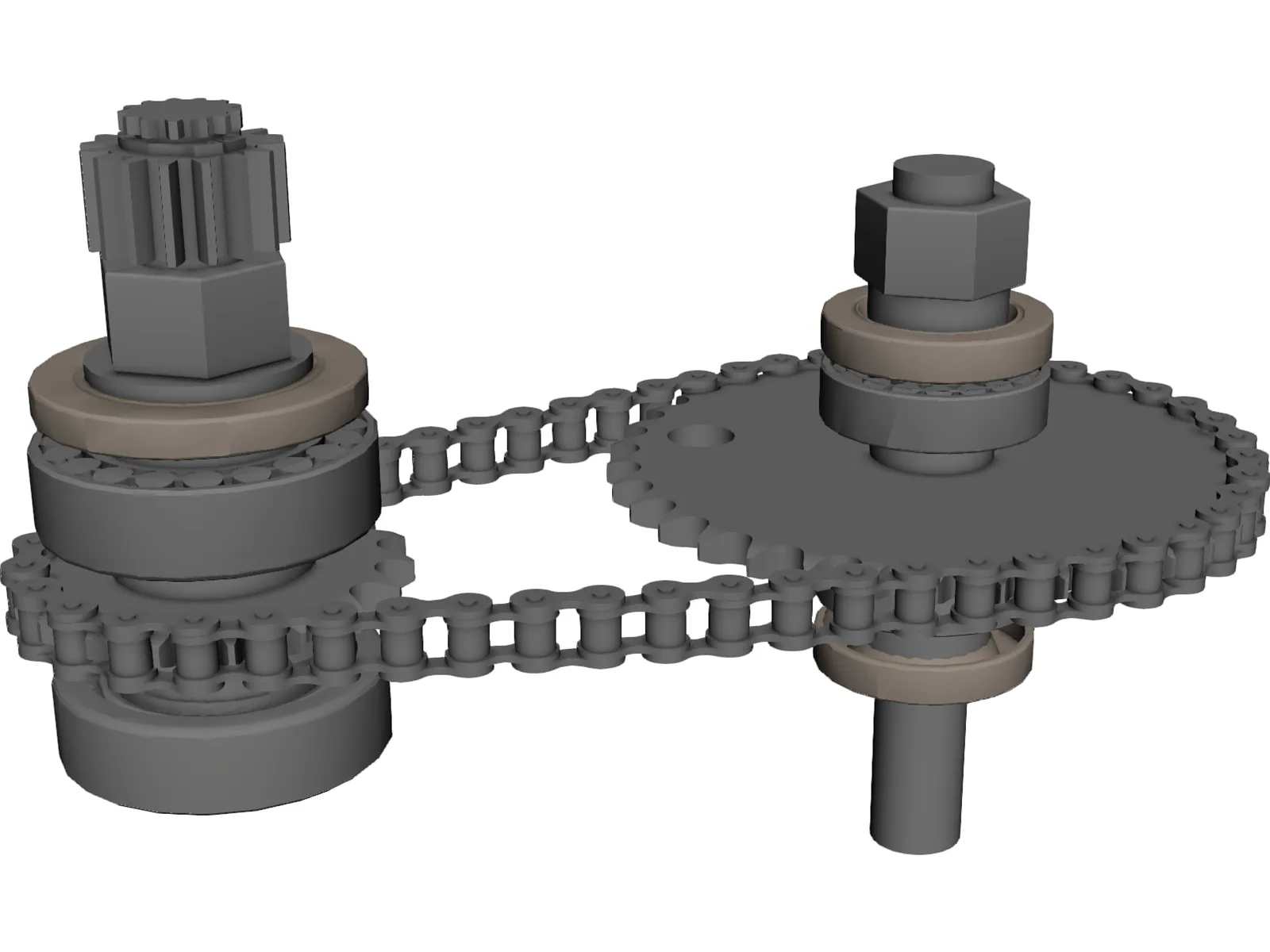

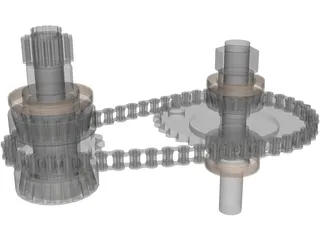

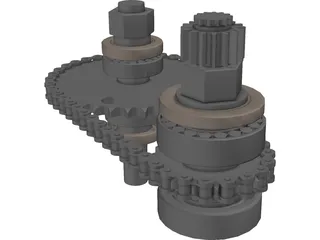

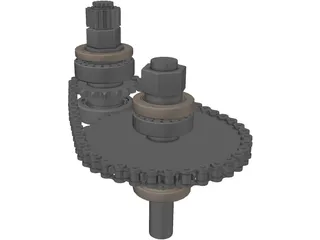

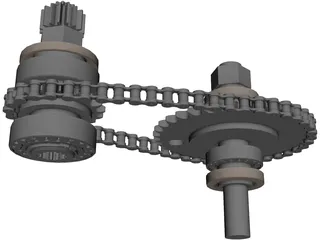

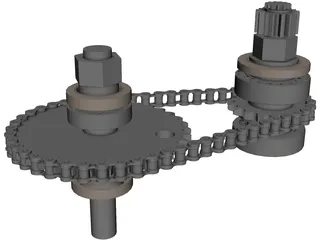

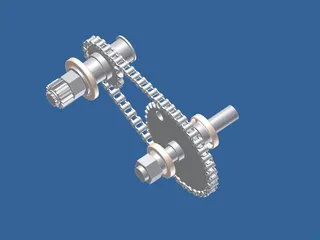

The internal model of the Chaincase designed and built in 2007/08 for the 2008 Model Bison Pullers 1/4 Scale tractor. It distributed power between a hydraulic motor input and the rear and front axles. It utilizes #40 chain and sprockets to reduce the drive ratio to the front axle, while driving direct to the rear axle spur gear drive.
Uploaded by Curt Thoreson on February 2009.
