2 Axle Traction Rail Bogie CAD Model

2 Axle Traction Rail Bogie 3D model featuring a detailed rail vehicle bogie design with accurate wheel and axle configuration. Suitable for engineering visualization, 3D printing reference, and virtual product presentation. High-quality geometry for clear inspection and analysis.

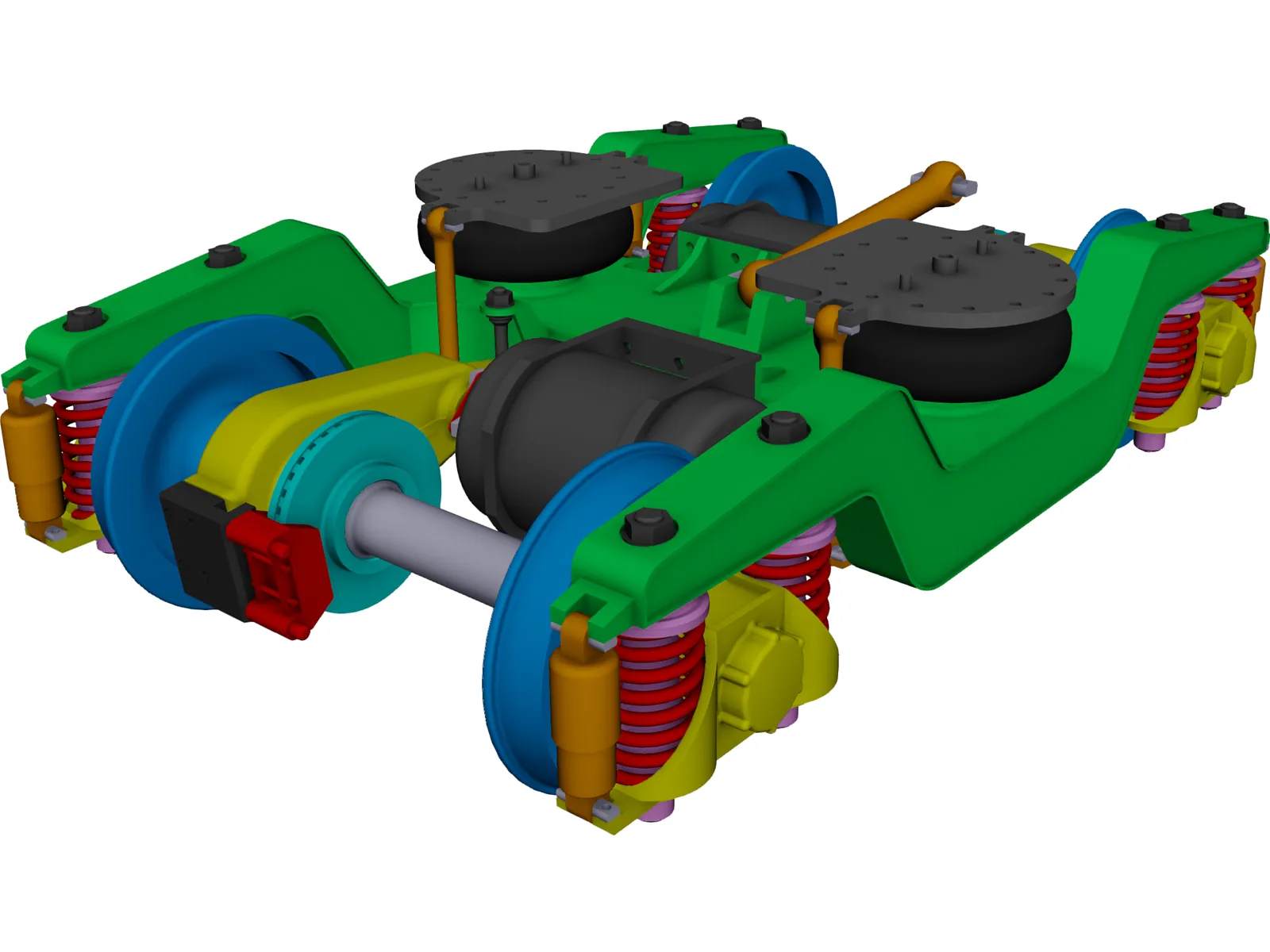

2 Axle Traction Rail Bogie 3D Model main preview

Overview

Download the 2 Axle Traction Rail Bogie CAD Model available in STEP and IGES CAD file formats. Converted polygonal versions also available in MAX, FBX, OBJ, BLEND, C4D file formats.

This solid CAD 3d model compatible with AutoCAD, SolidWorks, Inventor, Pro/Engineer, Siemens NX, PTC Creo, Fusion 360, Solid Edge, CATIA, ACIS and other CAD/CAM/CAE packages. Converted versions compatible with 3ds Max, Maya, Blender, Cinema 4D, Unreal Engine, Unity, Lightwave, Softimage, SketchUp, and other 3D modeling, animation, game design and AR/VR packages.

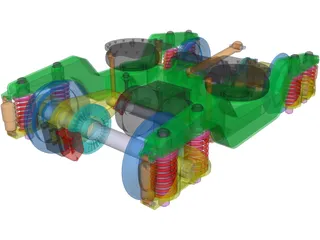

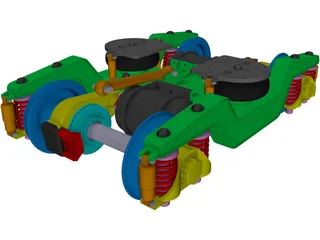

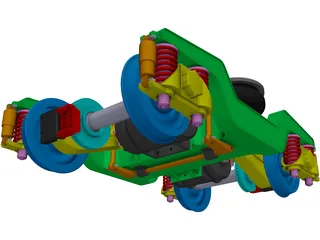

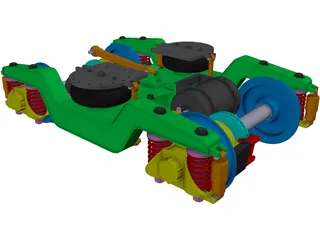

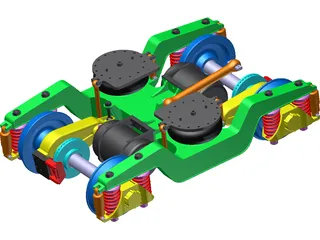

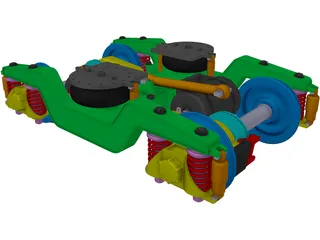

2 Axle rail bogie with 2 traction electromotors, multiplate clutch, disc brakes, primary and secondary suspension.

Uploaded by Jan Lášek on February 2013

License

Royalty-Free License.
Commercial and editorial use according to site license terms.
Redistribution of source files is not allowed.
Please review the full license details before using the model in published work.
