Screw Pump and Motor CAD Model

Screw Pump and Motor 3D model for industrial fluid systems. Detailed 3D representation of a screw pump coupled with a motor, suitable for engineering visualization, presentations, and design documentation. Clean geometry and accurate proportions for easy use in CAD and simulation workflows.

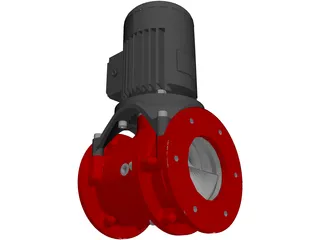

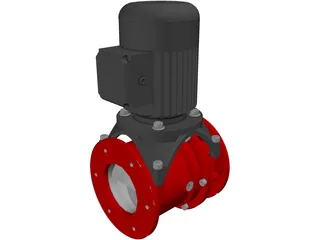

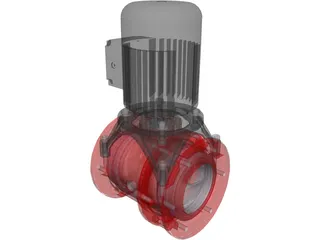

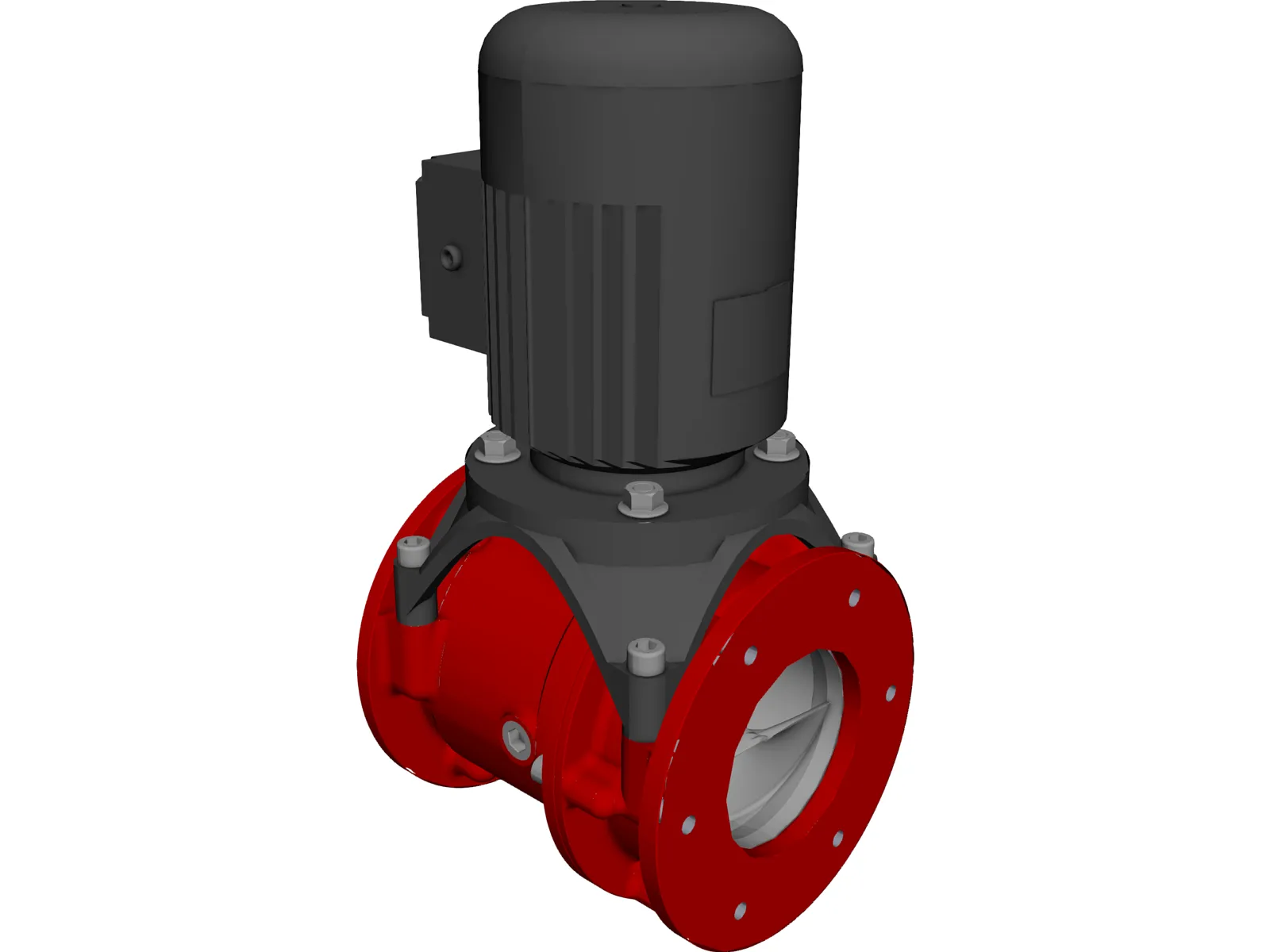

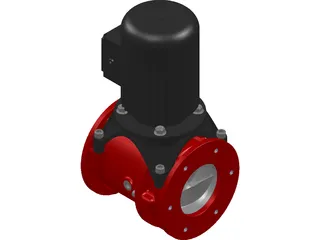

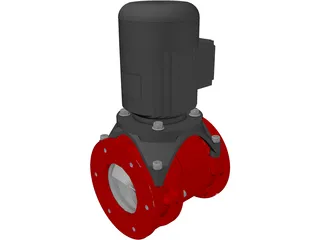

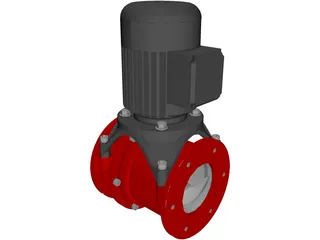

Screw Pump and Motor 3D Model main preview

Overview

Download the Screw Pump and Motor CAD Model available in STEP and IGES CAD file formats. Converted polygonal versions also available in MAX, FBX, OBJ, BLEND, C4D file formats.

This solid CAD 3d model compatible with AutoCAD, SolidWorks, Inventor, Pro/Engineer, Siemens NX, PTC Creo, Fusion 360, Solid Edge, CATIA, ACIS and other CAD/CAM/CAE packages. Converted versions compatible with 3ds Max, Maya, Blender, Cinema 4D, Unreal Engine, Unity, Lightwave, Softimage, SketchUp, and other 3D modeling, animation, game design and AR/VR packages.

Designed in Solidworks. Bevel gear drive. Shaftless. Dual pumping direction. Incorperates motor mount.

Uploaded by Benjamin Norton on October 2010

License

Royalty-Free License.
Commercial and editorial use according to site license terms.
Redistribution of source files is not allowed.
Please review the full license details before using the model in published work.
