Download the Ruger Shotgun Model KRL1127BRE CAD Model available in STEP and IGES CAD file formats. Converted polygonal versions also available in MAX, FBX, OBJ, BLEND, C4D file formats.
This solid CAD 3d model compatible with AutoCAD, SolidWorks, Inventor, Pro/Engineer, Siemens NX, PTC Creo, Fusion 360, Solid Edge, CATIA, ACIS and other CAD/CAM/CAE packages. Converted versions compatible with 3ds Max, Maya, Blender, Cinema 4D, Unreal Engine, Unity, Lightwave, Softimage, SketchUp, and other 3D modeling, animation, game design and AR/VR packages.

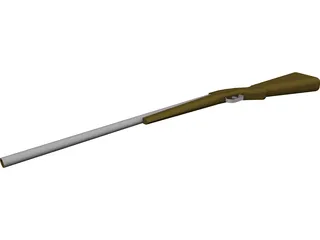

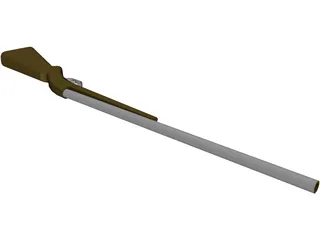

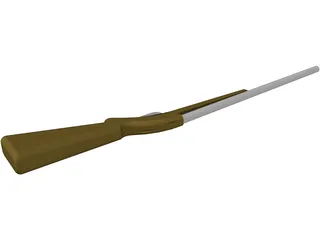

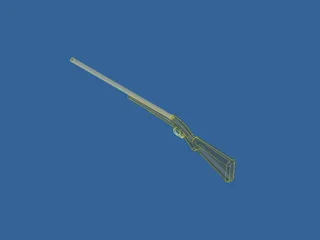

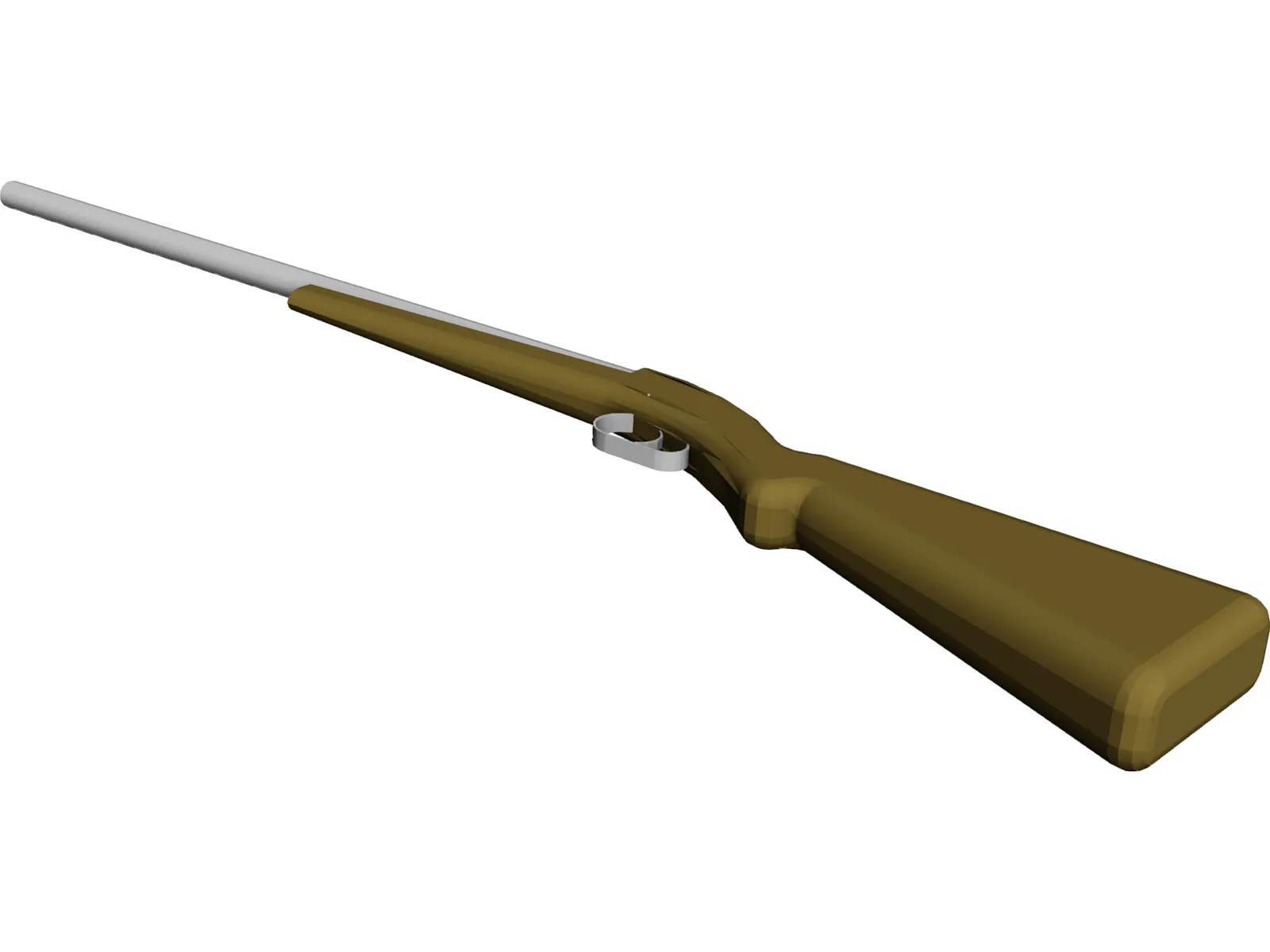

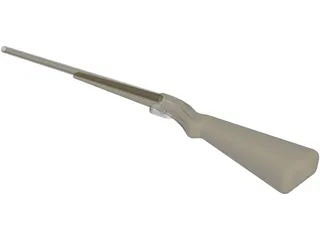

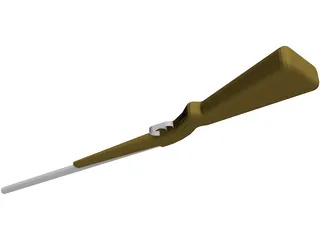

This is a model of a shotgun modelled to scale for space-claim purposes only (not for manufacturing of the gun). Critical dimensions such as barrel length, drop at comb, drop at heel and distance to trigger were taken from the catalogue information. The rest was illustrated based on the image. This model was exported from Pro/ENGINEER version Wildfire 4.0 to iges file format with surfaces only.
Uploaded by Jonathan Durston on November 2008.
