Rotary Strainer 3D Model

Rotary Strainer 3D Model
3D

Overview

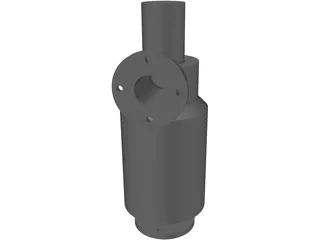

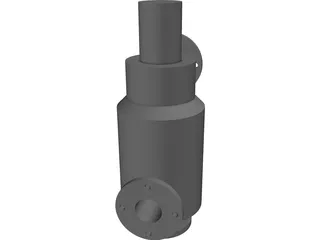

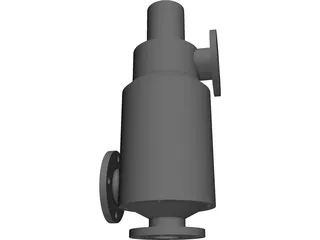

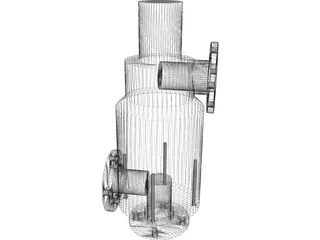

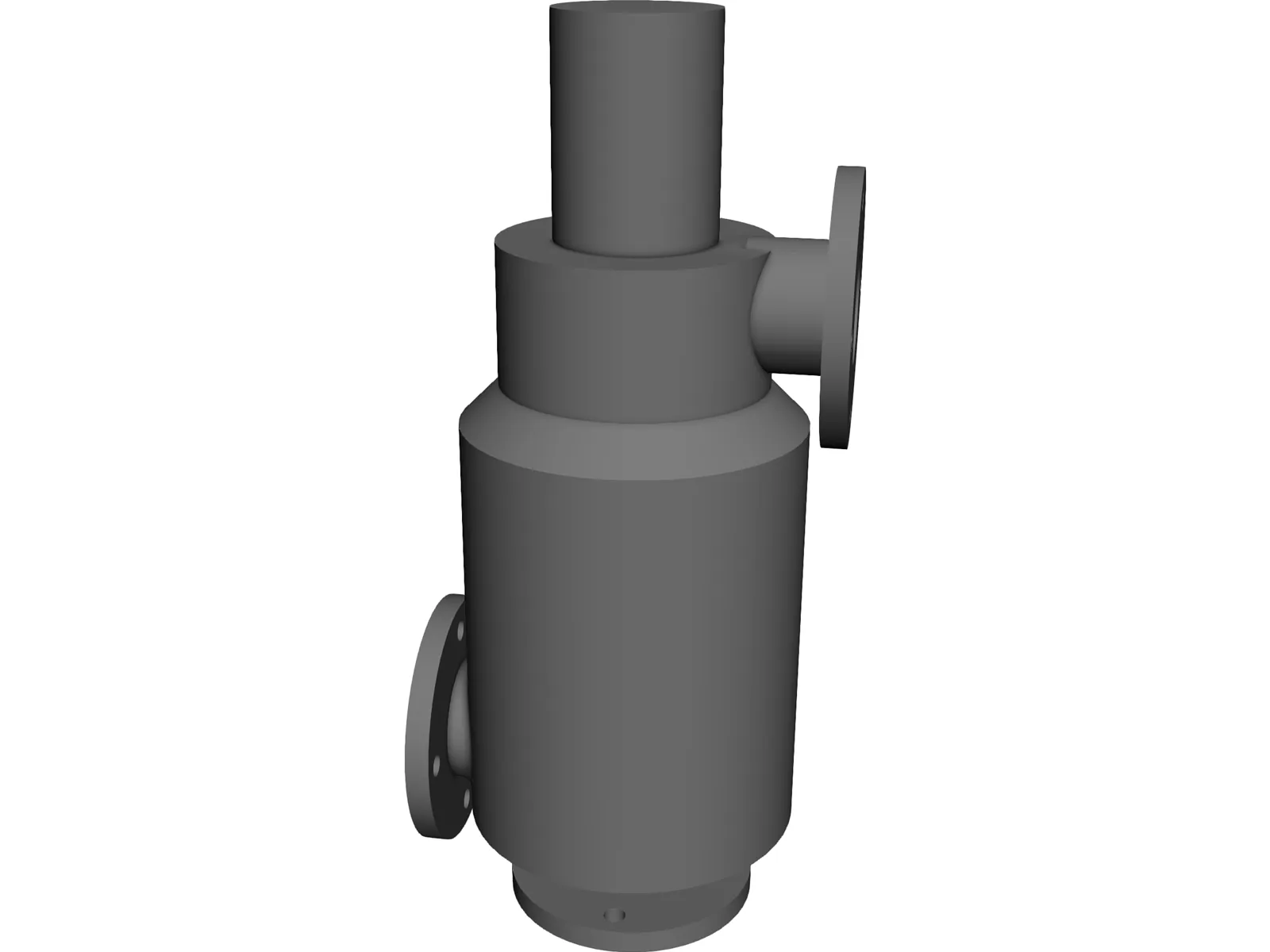

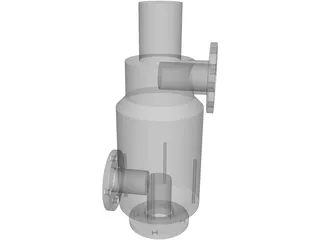

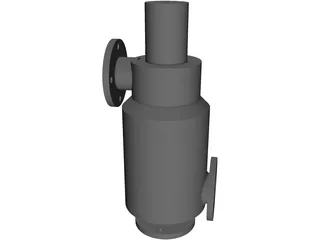

This is a rotary filter strainer used in a food processing plant. The slurry enters the top horizontal flange, while clear liquid flows through the lower horizontal flange. Solid particles drop out the bottom flange. Particles are wiped off the strain.

License Information

Uploaded by Christopher Frank into Industrial - Industrial - Other 3D Models. Commercial use allowed.

Reviews

  • no reviews yet...

Account Requirements

Free with uploads or Paid
Register Now

Specification

Geometry: Polygonal
Polygons: 7520
Vertices: 3738
Objects: 1
Materials: 1
Textures: 0
UV Mapped: No
Uploaded: Jul 2007
Id: 11553

3D File Formats
