Download the Polaris RZR (Race) 2WD Front Suspension CAD Model available in STEP and IGES CAD file formats. Converted polygonal versions also available in MAX, FBX, OBJ, BLEND, C4D file formats.
This solid CAD 3d model compatible with AutoCAD, SolidWorks, Inventor, Pro/Engineer, Siemens NX, PTC Creo, Fusion 360, Solid Edge, CATIA, ACIS and other CAD/CAM/CAE packages. Converted versions compatible with 3ds Max, Maya, Blender, Cinema 4D, Unreal Engine, Unity, Lightwave, Softimage, SketchUp, and other 3D modeling, animation, game design and AR/VR packages.

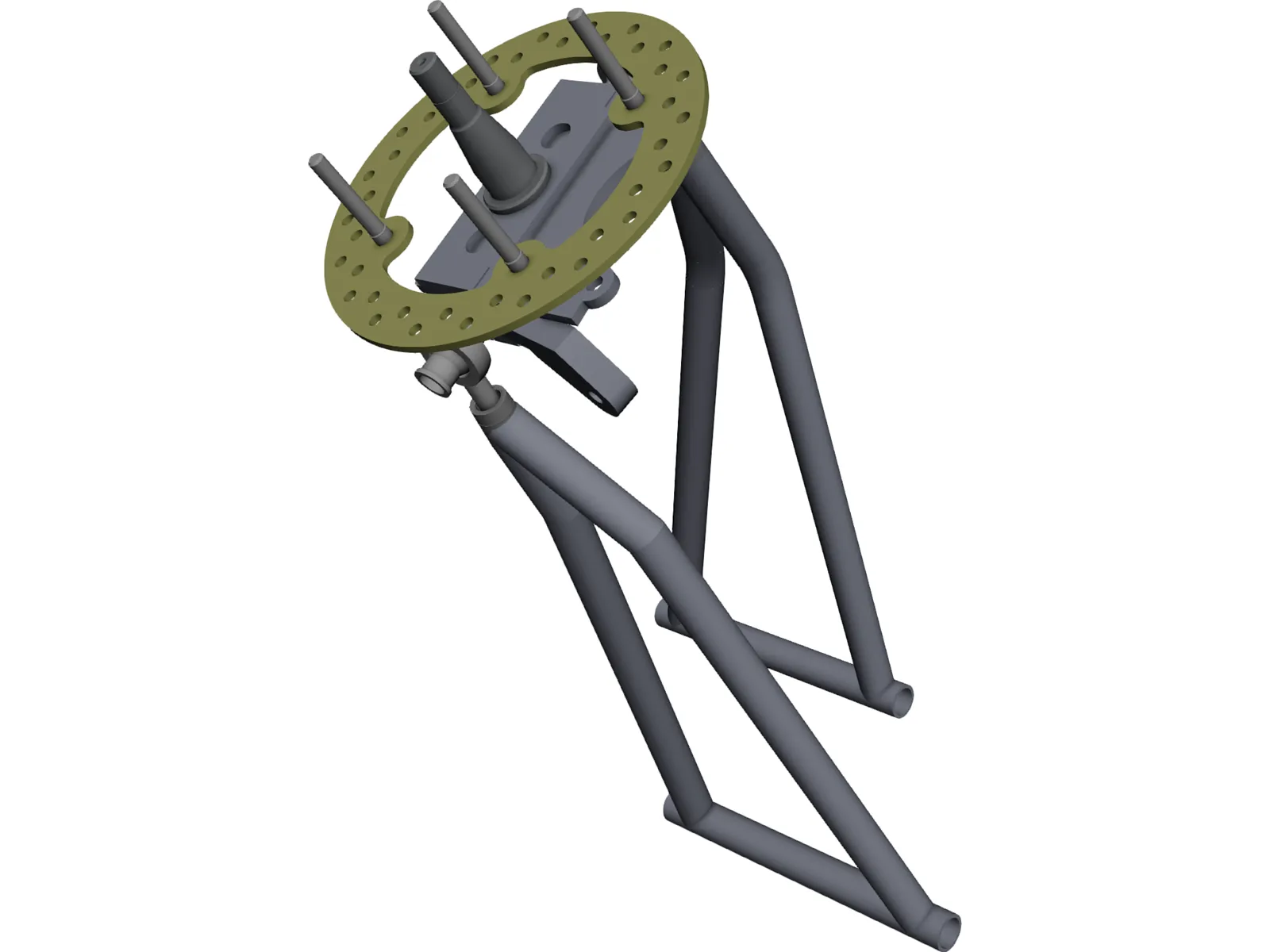

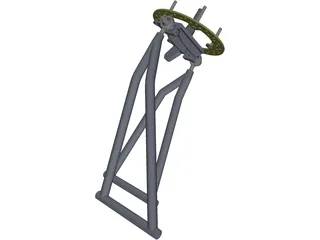

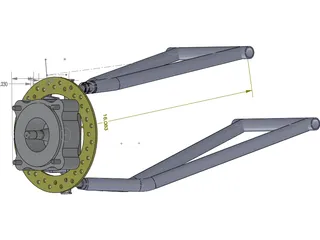

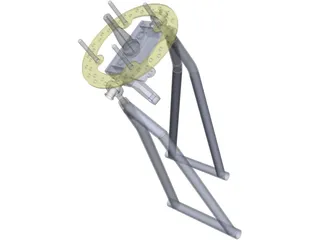

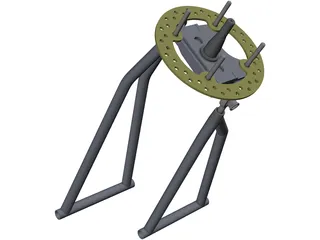

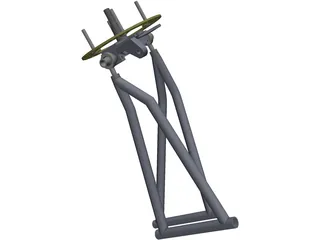

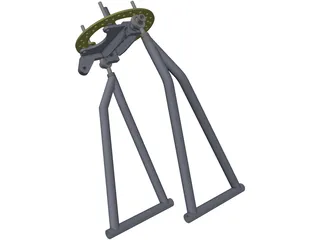

Control arms are designed to fit Polaris Ranger RZR, Length is the same as RZR-S. arms could be used as stock replacements but in this case i`ve added a knuckle and hub for 2wd, these parts were modeled to be created in the real world and are currently in action.
brake disk in assembly is the same as the factory front brake disk. hub bolt pattern is 4/156, same as standard rzr.
balljoints are 5/8 trunion balls from midwest control.
