Horizontal/vertical log splitter CAD Model

Horizontal/vertical log splitter CNC 3D model, featuring a compact frame, cutting wedge mechanism, and adjustable log positioning for efficient splitting. Includes detailed CAD components and clear geometry for accurate machining, planning, and visualization in your woodworking and fabrication projects. Suitable for design and engineering reference.

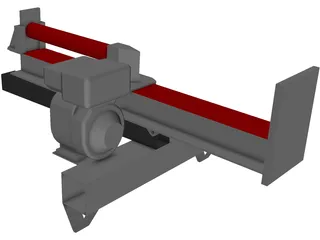

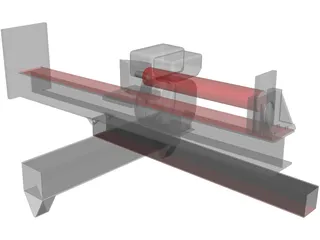

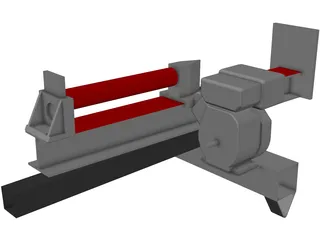

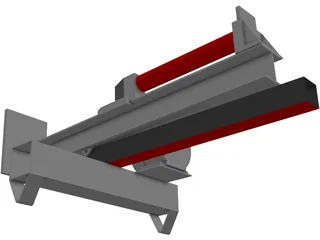

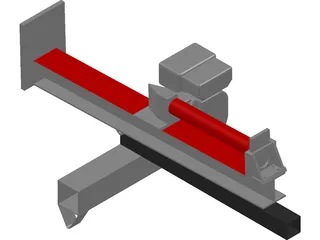

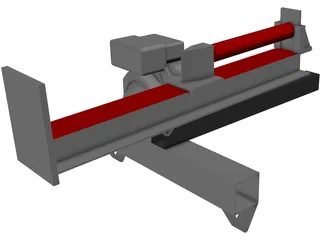

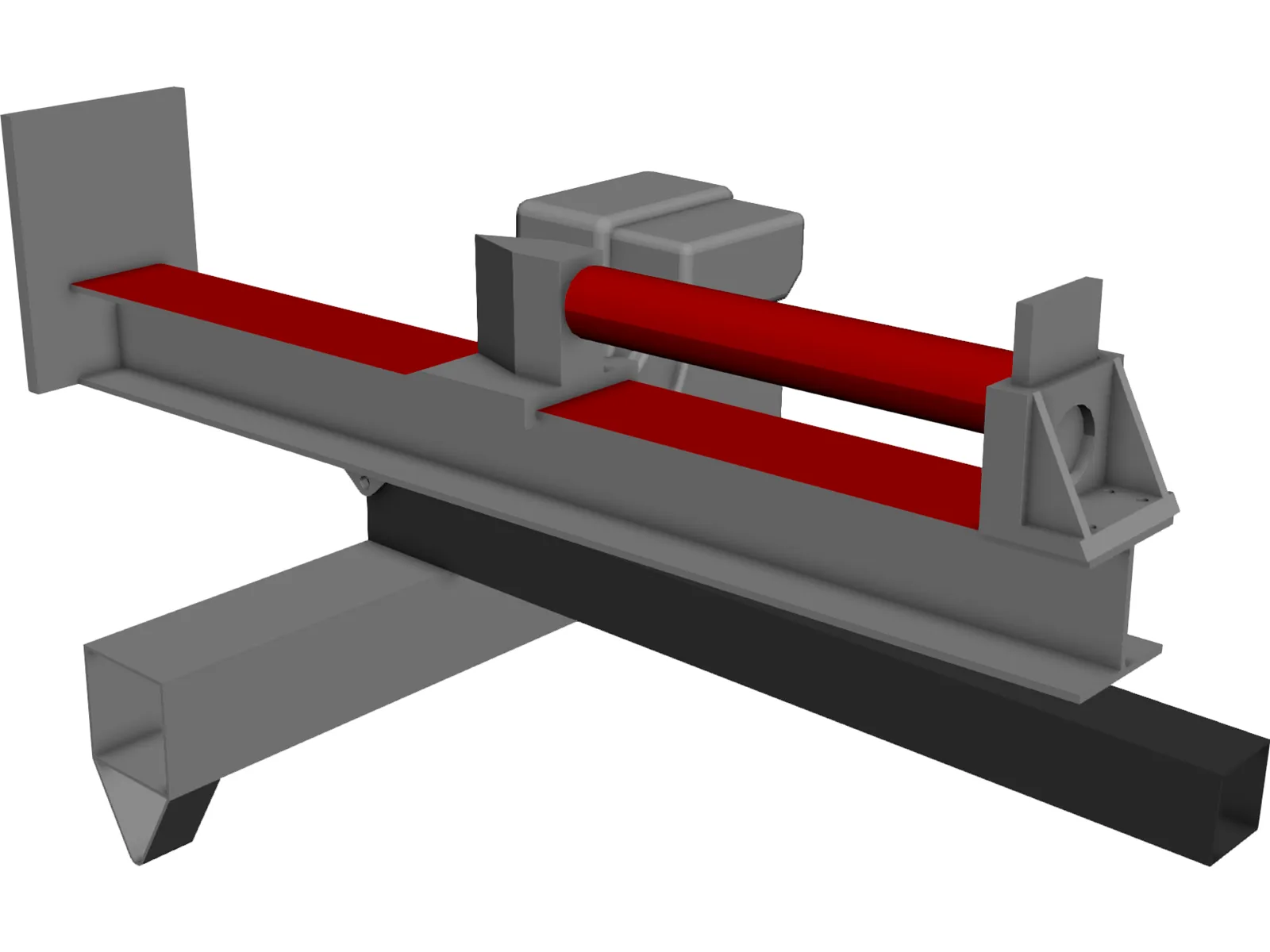

Horizontal/vertical log splitter 3D Model main preview

Overview

Download the Horizontal/vertical log splitter CAD Model available in STEP and IGES CAD file formats. Converted polygonal versions also available in MAX, FBX, OBJ, BLEND, C4D file formats.

This solid CAD 3d model compatible with AutoCAD, SolidWorks, Inventor, Pro/Engineer, Siemens NX, PTC Creo, Fusion 360, Solid Edge, CATIA, ACIS and other CAD/CAM/CAE packages. Converted versions compatible with 3ds Max, Maya, Blender, Cinema 4D, Unreal Engine, Unity, Lightwave, Softimage, SketchUp, and other 3D modeling, animation, game design and AR/VR packages.

Horizontal/Vertical hydraulic log splitter with a GX390 clone engine.

Uploaded by Jim Craighead on June 2010

License

Royalty-Free License.
Commercial and editorial use according to site license terms.
Redistribution of source files is not allowed.
Please review the full license details before using the model in published work.
