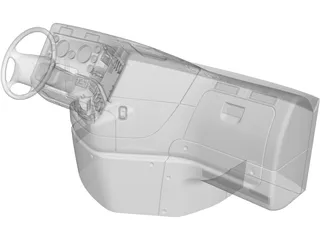

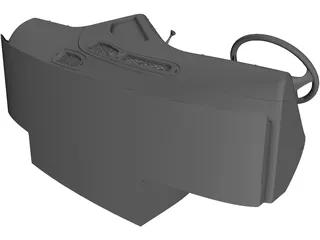

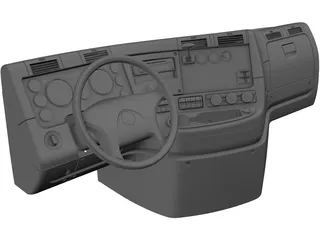

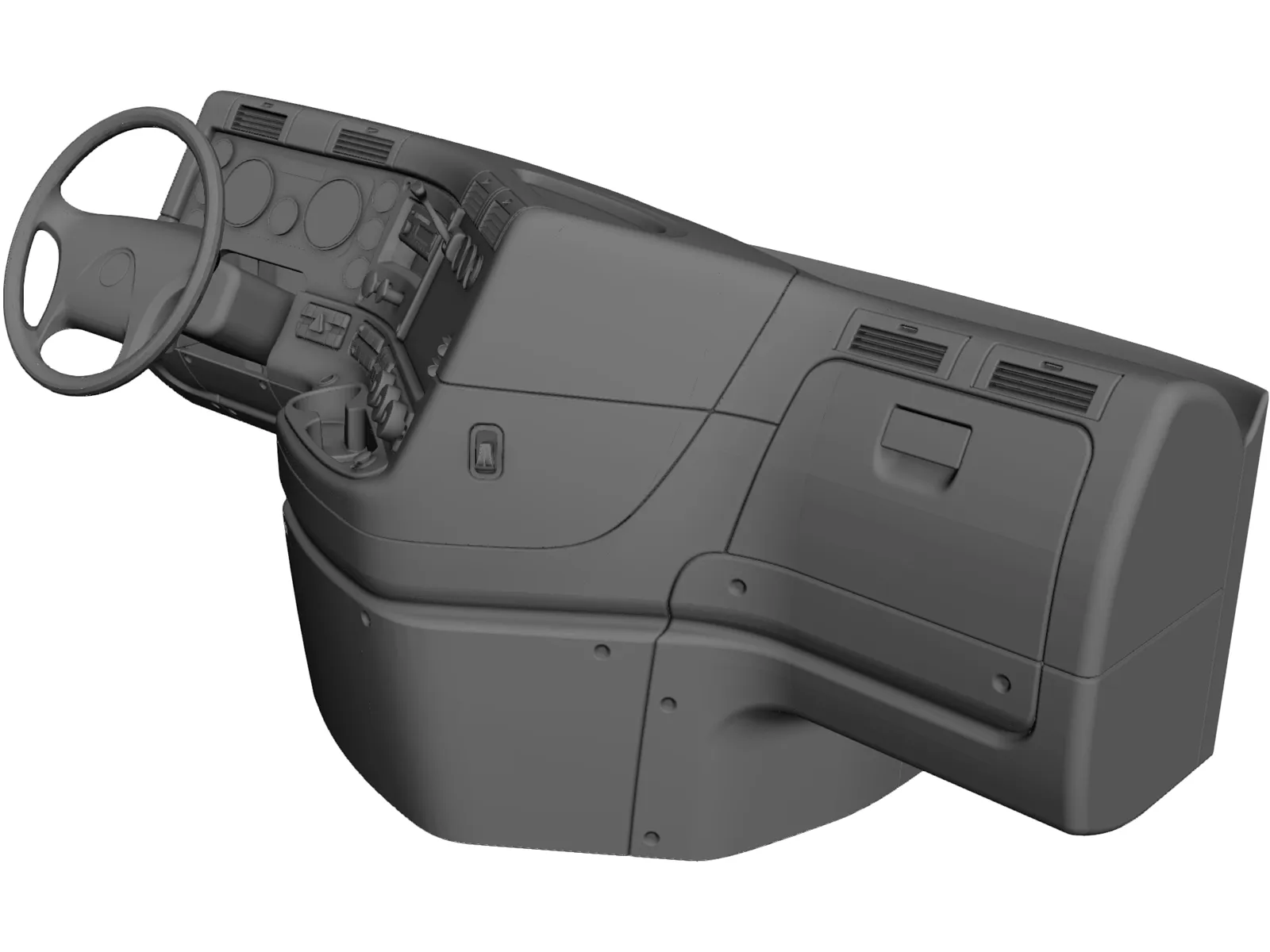

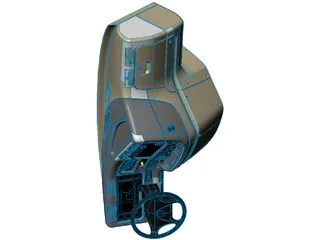

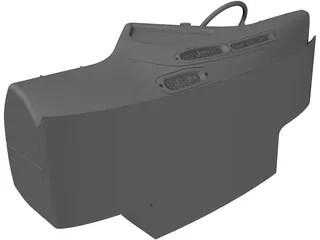

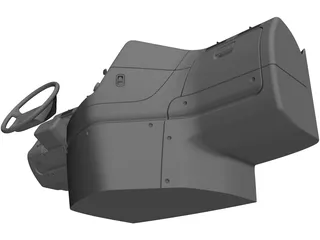

Download the Freightliner Cascadia Dashboard CAD Model (2015) available in STEP and IGES CAD file formats. Converted polygonal versions also available in MAX, FBX, OBJ, BLEND, C4D file formats.
This solid CAD 3d model compatible with AutoCAD, SolidWorks, Inventor, Pro/Engineer, Siemens NX, PTC Creo, Fusion 360, Solid Edge, CATIA, ACIS and other CAD/CAM/CAE packages. Converted versions compatible with 3ds Max, Maya, Blender, Cinema 4D, Unreal Engine, Unity, Lightwave, Softimage, SketchUp, and other 3D modeling, animation, game design and AR/VR packages.
The 3d Model was created first scanning the original dashboard from a Freightliner Cascadia 2015 and I put all the mesh files together and then I sculpted the main surfaces over them with Autodesk Alias.
Then I sculpted all the details: buttons, numbers and all the other small details. The final result is a Dashboard that has 95% of accuracy.
To scan the dashboard I used a 3d systems Sense Scanner.
Uploaded by Ivan Estrada on December 2020.
