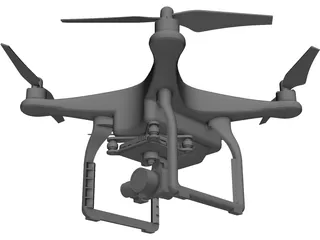

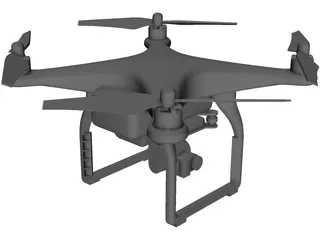

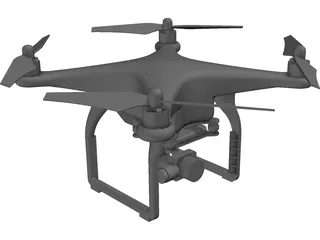

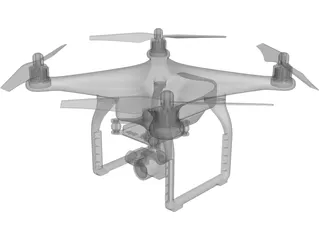

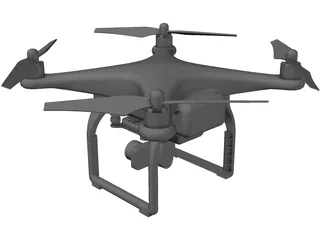

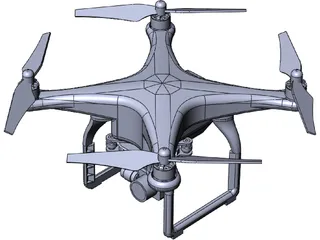

DJI Phantom 3 Drone 3D CAD Model

★★★★★

DJI Phantom 3 Drone 3D CAD Model for AutoCAD, SolidWorks, Inventor, Pro/Engineer, CATIA, 3ds Max, Maya, Cinema 4D, Lightwave, Softimage, Blender and other CAD and 3D modeling software.

drone, quadcopter, dji, phantom, nurbs

Uploaded by Suraj Kho into Electronics - Video - Cameras / Camcorders / Projectors / Drones 3D Models.

Specification:
Code:	110107
Uploaded:	Jun 2016
Geometry:	CAD Solid
Polygons:	-
Vertices:	-
Objects:	-
Materials:	-
Textures:	-
UV Mapped:	No
Minimum account required:	Free with uploads
Order Now

File Formats:
Polygonal
3ds Max (.max)
Wavefront (.obj)
FBX (.fbx)
Blender (.blend)
Cinema 4D (.c4d)
AutoCAD (.dxf)
CAD
STEP AP214 (.step)
IGES 5.3 (.iges)
other file formats

Similar 3D Models

3D Model Reviews

Overall a nice model. However, the propellers are not modeled accurately. On a real Phantom 3, the two propellers diagonally opposite one another rotate in one direction with corresponding pitch, whereas the other two rotate in the other direction and thus have the opposite pitch. On this model, all four propellers are identical. Also, the detail on the motors where they attach to the propellers differ considerably from a P3 that I observed, although this could be due to differences in P3 versions.
George E Bohannon (08.12.2018 01:14)

3D File Formats

Downloadable 3D Polygonal Mesh file formats available: 3ds Max (.max), Wavefront (.obj), Autodesk FBX (.fbx), Blender (.blend), Cinema 4D (.c4d), AutoCAD (.dxf). Downloaded 3D Models can be used in 3ds Max, Blender, Maya, Lightwave, Softimage, Cinema 4D, AutoCAD, Houdini, Daz Studio, Modo, Unity 3D, Unreal Engine, SketchUp, ZBrush, Poser and other 3D modeling software. The following file formats can be exported from these above programs: 3D Studio (.3ds), Alembic (.abc), COLLADA (.dae), Microsoft DirectX Direct3D (.x), glTF 2.0 WebGL (.glb, .gltf), Stanford (.ply), StereoLithography (.stl), Universal Scene Description (.usd, .usdc, .usda), VRML97 (.wrl), X3D Extensible 3D (.x3d).

Downloadable 3D CAD Solid Object file formats available: STEP SOLID [AP214] (.step), IGES 5.3 NURBS (.iges). 3D CAD Solids can be imported into SolidWorks (.sldasm; .sldprt), Autodesk Inventor (.iam; .ipt), Pro/Engineer (.asm; .prt), PTC Creo, Siemens NX, Fusion 360, SolidEdge, CATIA, ACIS and other CAD/CAM/CAE packages. 3D CAD models can be downloaded as polygonal 3D meshes also.
