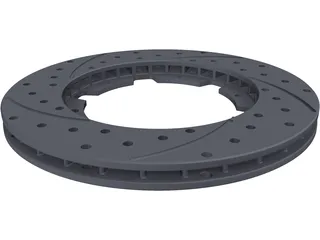

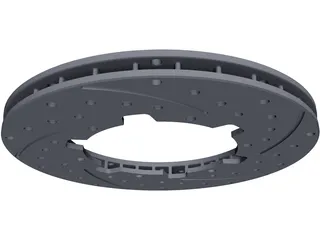

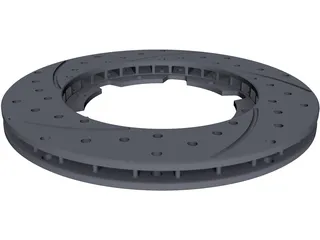

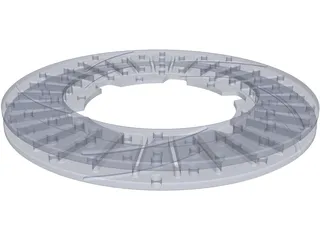

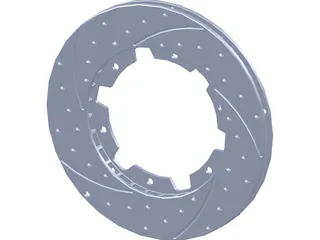

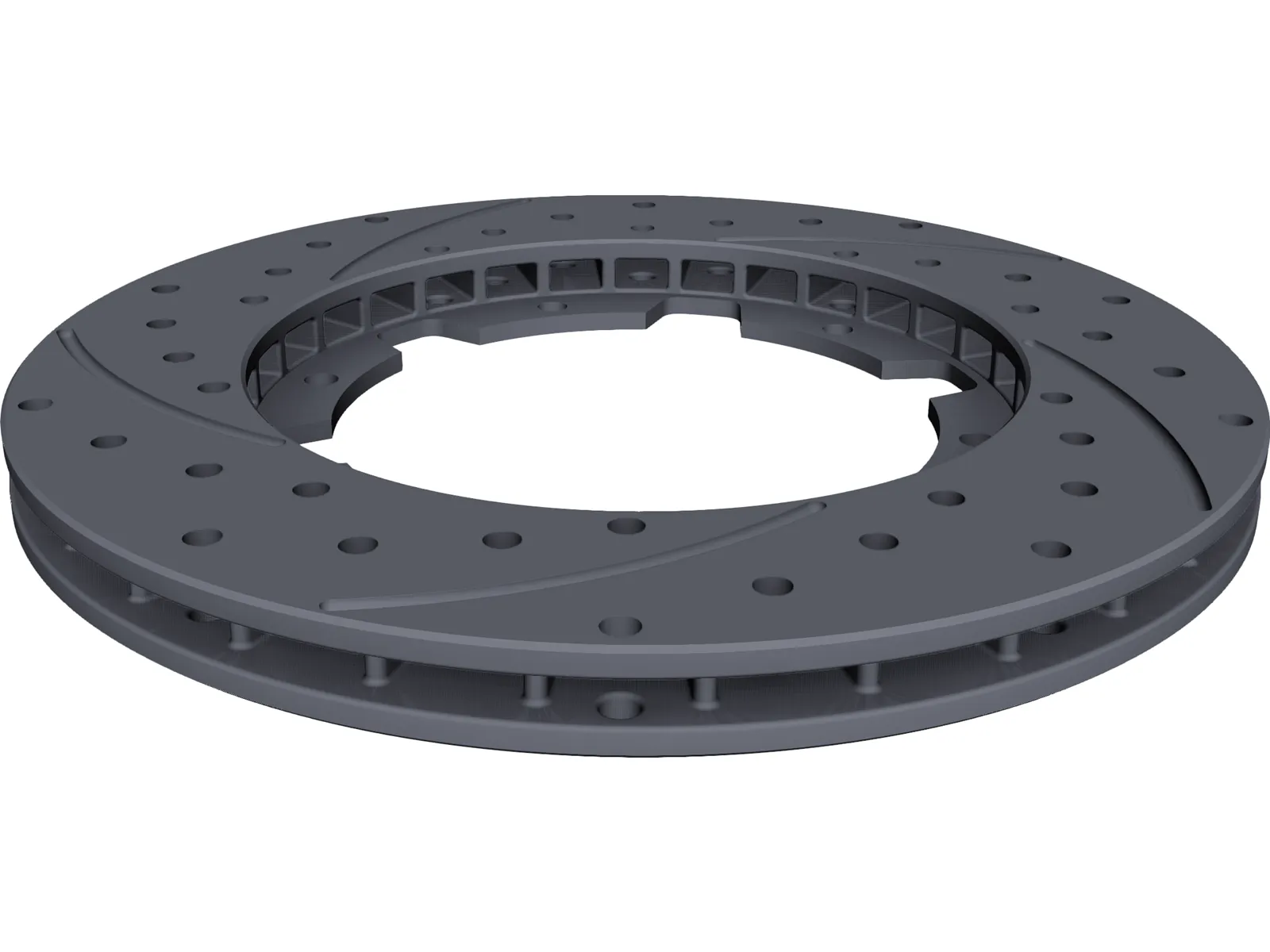

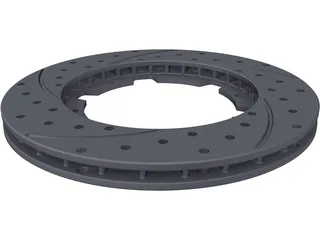

Disc Brake Rotor CAD Model

3D model of a disc brake rotor, detailed and ready for rendering and visualization. Accurate geometry suits automotive design, mechanical engineering, and brake system projects. Use it for presentations, simulations, and product mockups with realistic rotor shape and proportions.

Overview

Download the Disc Brake Rotor CAD Model available in STEP and IGES CAD file formats. Converted polygonal versions also available in MAX, FBX, OBJ, BLEND, C4D file formats.

This solid CAD 3d model compatible with AutoCAD, SolidWorks, Inventor, Pro/Engineer, Siemens NX, PTC Creo, Fusion 360, Solid Edge, CATIA, ACIS and other CAD/CAM/CAE packages. Converted versions compatible with 3ds Max, Maya, Blender, Cinema 4D, Unreal Engine, Unity, Lightwave, Softimage, SketchUp, and other 3D modeling, animation, game design and AR/VR packages.

9a disc rotor 11 inch vented.

Uploaded by derf skrow on March 2010

License

Royalty-Free License.
Commercial and editorial use according to site license terms.
Redistribution of source files is not allowed.
Please review the full license details before using the model in published work.
