Chuck Precision 4-Jaw CAD Model

Chuck Precision 4-Jaw industrial 3D model for detailed mechanical design and visualization. Accurate geometry supports CAD workflows, engineering presentations, and component layout planning. Ideal for use in manufacturing, machining, and mechanical engineering projects needing a reliable multi-jaw chuck representation.

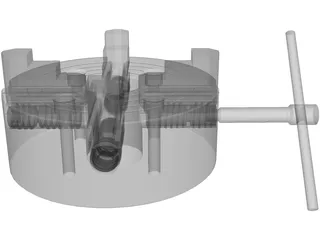

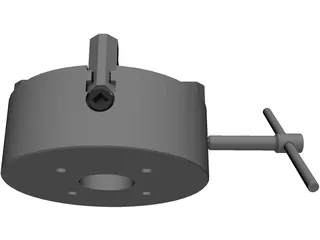

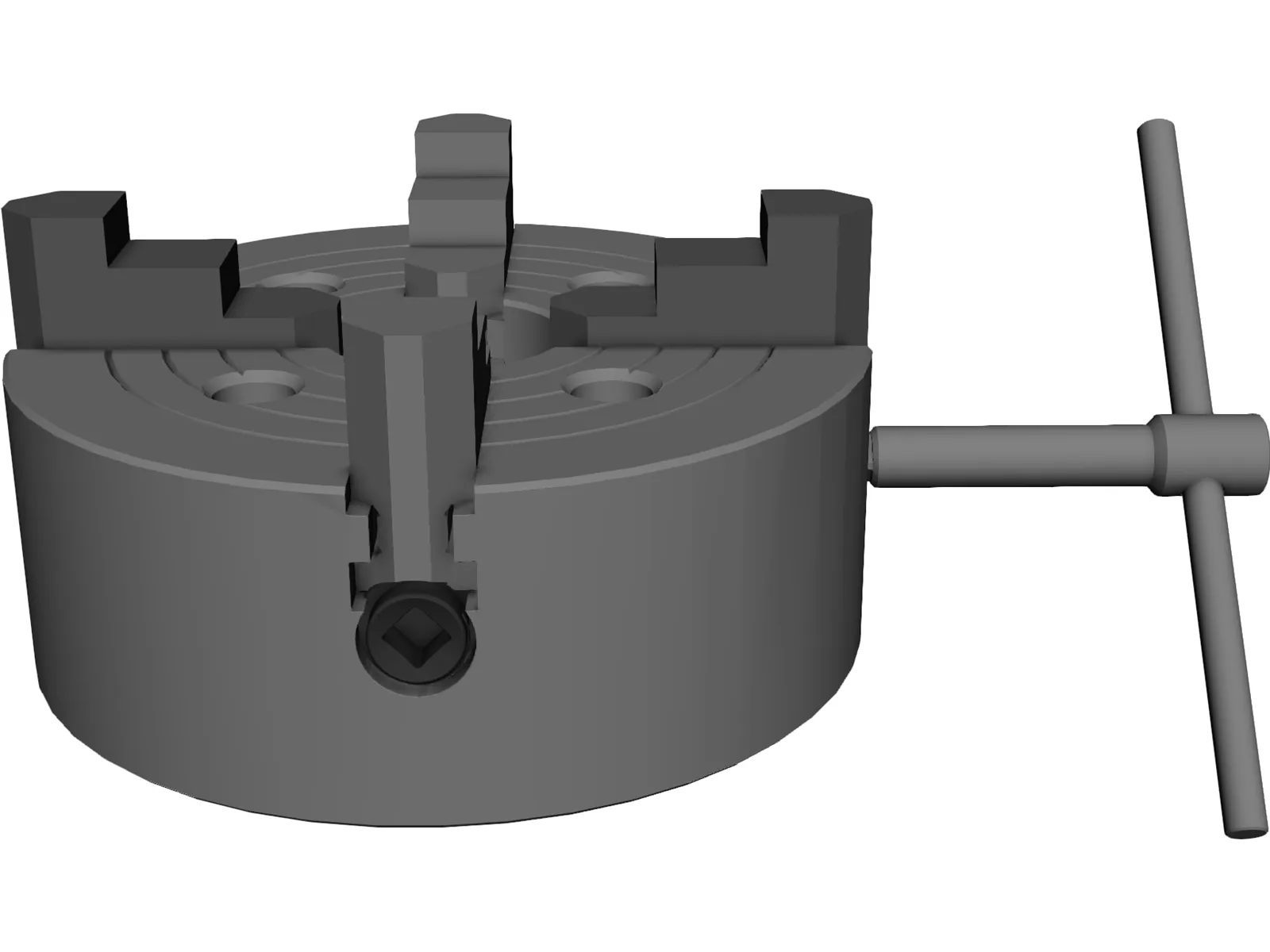

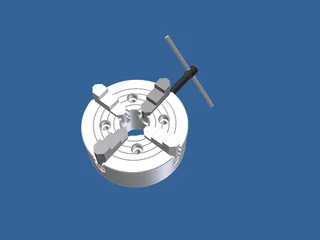

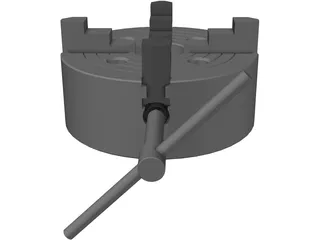

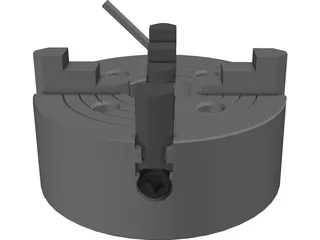

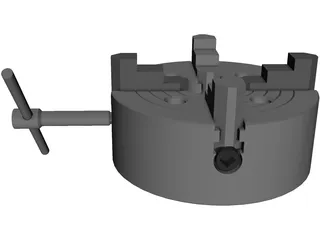

Chuck Precision 4-Jaw 3D Model main preview

Overview

Download the Chuck Precision 4-Jaw CAD Model available in STEP and IGES CAD file formats. Converted polygonal versions also available in MAX, FBX, OBJ, BLEND, C4D file formats.

This solid CAD 3d model compatible with AutoCAD, SolidWorks, Inventor, Pro/Engineer, Siemens NX, PTC Creo, Fusion 360, Solid Edge, CATIA, ACIS and other CAD/CAM/CAE packages. Converted versions compatible with 3ds Max, Maya, Blender, Cinema 4D, Unreal Engine, Unity, Lightwave, Softimage, SketchUp, and other 3D modeling, animation, game design and AR/VR packages.

Precision Chuck with Key for workholding.

Uploaded by Matt Jones on August 2009

License

Royalty-Free License.
Commercial and editorial use according to site license terms.
Redistribution of source files is not allowed.
Please review the full license details before using the model in published work.
